Drone-enabled Multi-modal system for inspection of industrial components
In case of any use or reference, please cite:
@article{nooralishahi2022drone,
title={Drone-Enabled Multimodal Platform for Inspection of Industrial Components},
author={Nooralishahi, Parham and L{\'o}pez, Fernando and Maldague, Xavier PV},
journal={IEEE Access},
volume={10},
pages={41429--41443},
year={2022},
publisher={IEEE}
}
In the rise of recent advancements in unmanned aerial vehicles, many studies have focused on using multi-modal platforms for remote inspection of industrial and construction sites. The acquisition of multiple data modalities assists the inspectors in acquiring comprehensive information about the surrounding environment and the targeted components. Despite the benefits of multi-modal platforms, the calibration and fusion of the obtained data modalities present many challenges that need to be addressed. One of the main problems in such systems is the dissimilarity of feature appearances in different spectrums. One of the main approaches is to employ a calibration board with geometrically known features to estimate intrinsic and extrinsic parameters and accurately align the images in thermal and visible spectral bands. This study presents a comprehensive platform for drone-based multi-modal inspection of industrial and construction components, including three main components:
- a sensor setup that can be used as a standalone system or a payload for a drone;
- a multi-modal embedded system and
- a novel calibration board for multi-modal data fusion.
The multi-modal embedded system provides the required features to record, transmit, and visualize the thermal, visible, and depth data synchronously. Additionally, the system presents a multi-modal fusion technique to form RGBD&T data containing thermal and texture information of the obtained 3D view. Moreover, this study introduces a novel self-heating calibration board that uses Thermoelectric Peltier modules to provide an identifiable and sharp pattern in thermal and visible images. The calibration board is designed with an aim also to be used as Ground Control Point (GCP) in drone surveys.
.png "SETUP's CAD Design")

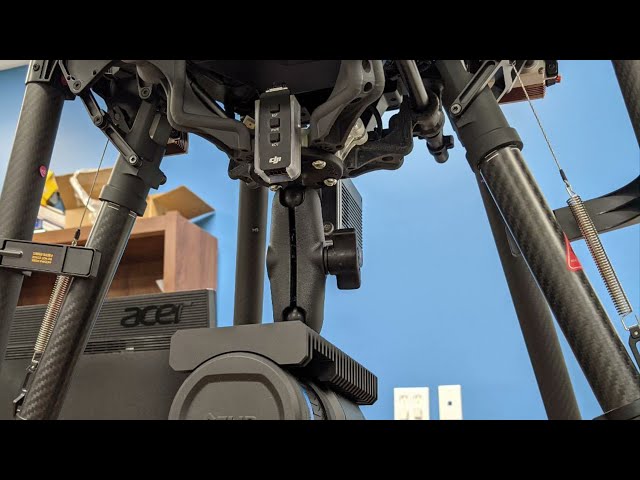

.jpg "Setup installed on DJI M600 Pro drone")
This study introduces a multi-modal acquisition and processing platform for inspecting industrial components using Unmanned Aerial Vehicles. The setup is designed to attach the sensors to the aerial platform and stabilize them against the drone's vibrations while operating. The platform includes thermal, visible, and stereo depth cameras and communicates directly with the flight controller to obtain the drone's inertial and GPS data. Also, embedded software is developed for calibration, acquisition, transmission, and fusion of multi-modal data. The data fusion method presented in this study generates RGBD&T data frames that contain the thermal, visible, and depth information of the observed scene and the drone's telemetry data. Later, the RGBD&T data is projected to the system coordinate to form a point cloud of the observed scene.

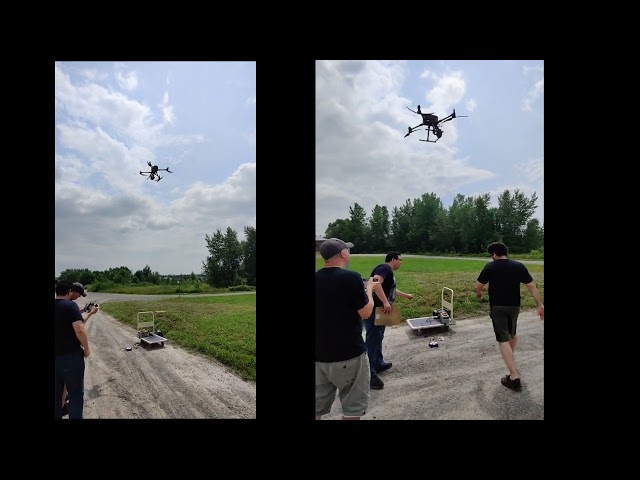

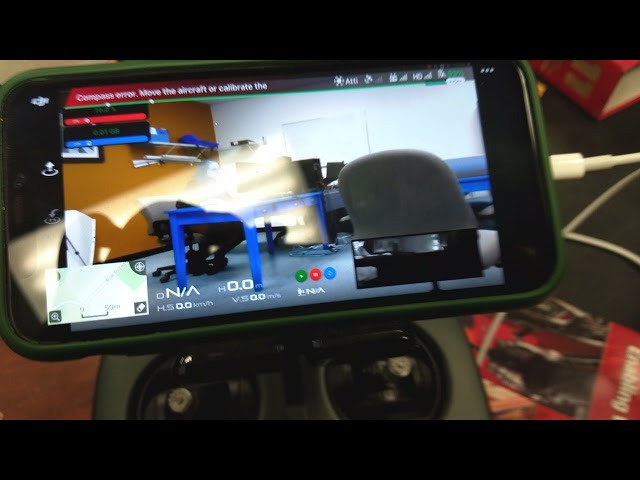

Video #2 - Drone mode
- Docker
- ROS Melodic
- OpenCV
- rospy
- pillow
- imageio
- console-menu
- kivy
- kivymd
- imutils
- flask
- psutil
For running the system, two scripts are prepared to automate the execution:
git clone https://github.com/parham/lemanchot-dc
cd lemanchot-dc
chmod u+x lemanchot_run.sh
chmod u+x run_docker.sh
./lemanchot_run.sh -a
./run_docker.sh
