Backend Engineering

• Monolith vs Microservices Architecture
• Service to Service communication
• Scaling
• Monitoring
• Functional Programming
• Asynchronous Programming
• Thread
• CompletableFuture
• Apollo, gRPC, Hermes
• Testing
• Monitoring
• Deployment
• gRPC

Monolith vs Microservices Architecture

• Monolith: User Interface + Business Logic + Data Access Layer in a single code base
• Microservices: Split up Monolith, have a dedicated system and databse for each business logic
  • Benefits: independently scale a system which is heavily used

Service to Service communication

• HTTP
• Hermes: more high performance than HTTP
• gRPC: remote procedure call

Scaling

• Vertical scaling (bigger machines)
• Horizontal scaling (more machine)
• Virtual Machines: virtualizes the hardware
• Kubenetes: virtualizes the operating system

Monitoring

• Logging: e.g. Google Cloud Logging
• Metrics: time-series data showing how things changed, e.g. Grafana (dashboard), pager duty (alerting)

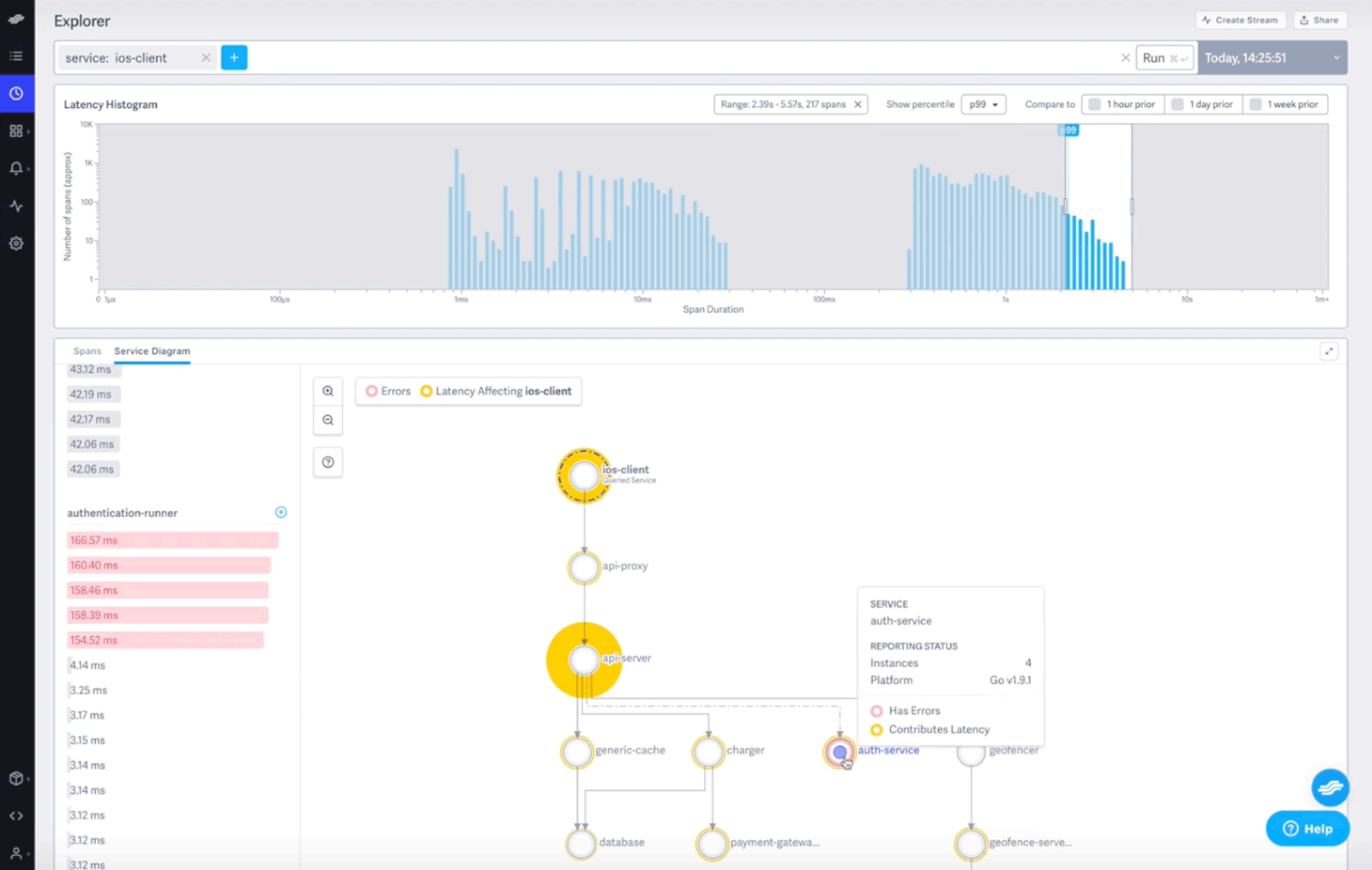

• Distributed request tracing: shows how a request goes through different systems/services, how long does it take, e.g. Lightstep

Functional Programming

• Everything is immutable, avoids mutability
• Functional Interfaces
• Lambda Expressions
• Method Reference
• Optionals
• Streams

Functional Interfaces

• An interface with exactly one abstract method
• Can be implemented by Lamdba Expressions or Method Reference
• Example: Predicate

public interface predicate<T> {
  boolean test(T t);

  default Predicate<T> negate() {
    return (t) -> !test(t);
  }

  ... other non-abstract methods
}

Lambda Expressions

• Syntactic sugar
• Instances of Functional Interfaces
• Implements the only method in the Functional Interface
• Implemented inline, as a variable or as in put to a method like a stream. The compiler infers the underlying Functional Interface using the type of the variable or parameter.
• Benefits: more readable, type safety

// Syntax
// 1st style
(p1, p2) -> doSomething(p1, p2);

// 2nd style: curly braces for multi statement method body or return statement
(parameters) -> {
  return doSomething(parameters);
}

// Example 1
@FunctionalInterface
public interface Runnable {
  public abstract void run();
}

// 1st style
Runnable runnable = new Runnable() {
  @Override
  public void run() {
    System.out.println("Hello");
  }
};
new Thread(runnable).start();

// 2nd style
Runnable runnable = () -> System.out.println("Hello");
new Thread(runnable).start();

// Example 2
// 1st style
Comparator<Integer> c =
  new Comparator<Integer>() {
    @Override
    public int compare(Integer a, Integer b) {
      return a - b;
    }
  };

// 2nd style
Comparator<Integer> c = (a, b) -> a - b;

Function Shapes

• built-in in java.util.function
• Consumer: takes one param of specified type, returns nothing

Consumer<Integer> printer = i -> System.out.println(i);

• Function: takes one param of specified type, returns the specified type

Function<Integer, Integer> twice = i -> i * 2;

• Supplier: takes no parameters, returns the specified type

Supplier<Long> currentTime = () -> Instant.now().toEpochMilli();

• Predicate: takes one param of specified type, returns boolean

Predicate<Integer> greaterThanTen = num -> num > 10;

Method Reference

• shorthand for special type of Lambda expressions
• Opt/Alt + Enter in IntelliJ can convert a lambda expression to a method reference

// Lambda
n -> Adder.addOneTo(n);
// Method Reference
Adder:addOneTo;

// Lambda
Adder adder = new Adder(10);
n -> adder.add(n);
// Method Reference
adder::add;

// Lambda
n -> new Adder(n);
// Method Reference
Adder::new;

Optionals

• immutable container used to contain a non-null value of any Object type
• benefits: avoids NPEs and if (x == null)

Optional<Integer> v1 = Optional.of(5); // Optional[5]
Optional<Integer> v2 = Optional.empty(); // empty Optional
Optional<Integer> v3 = Optional.of(null); // throws NullPointerException
Optional<Integer> v4 = Optional.ofNullable(null); // empty Optional
Optional<Integer> v5 = Optional.ofNullable(x); // nullable -> Optional

• Example

class UserData {
  public String name;
  public String product;
  public Optional<String> email;
}

interface UserStore {
  // Return Optional with user if userId is known, otherwise Optional.empty()
  Optional<UserData> lookup(final String userId);
}

class InMemoryUserStore implements UserStore {
  public InMemoryUserStore(Map<String, UserData> users) {
    this.users = users;
  }
  public Optional<UserData> lookup(String userId) {
    return Optional.ofNullable(users.get(userId));
  }
}

users.lookup(userId)
  .map(user -> user.name)
  .orElse("");

users.lookup(userId)
  .flatMap(user -> user.email)
  .orElse(null);

• Unwrapping an Optional
  • get(): returns the contents if present, otherwise throws an exception should be avoided, anti-pattern
  • orElse(fallbackValue)
  • orElseGet(() -> fallbackComputation()): requires a Supplier
  • orElseThrow(() -> generateException())
  • isPresent(): using optional imperatively, better option - ifPresent(v -> useValue(v))

Stream

• a sequence of objects which supports various methods taht can be pipelined together to get the desired result
• not a data structure, but can take input from different data structures
• immutable
• benefit: avoids explicit for/while-loops

list.stream()                     // generator
  .map(e -> e.name())             // operation: not applied straight awai
  .filter(n -> !n.isEmpty())      // operation
  .findFirst()                    // terminator, returns Optional<T>

• Generators: used to feed data into the streams
  • Stream.empty(): Empty stream
  • Stream.of(1,2,3): Stream of three elements
  • list.stream(): Stream from a List, can be used on any Java Collection
  • map.entrySet().stream(): Stream from the entries in a map
• A stream only be consumed once

Stream<Integer> nStream = Stream.of(1,2,3);
nStream.map(x -> x * 2).forEach(System.out::println);
nStream.map(x -> x * 3).forEach(System.out::println); // throws IllegalSstateException (nStream is closed)

• Collectors: toList(), toSet(), toCollection()

numbers.collect(Collectors.toCollection(LinkedList::new));

• Collectors.toMap(keyMapper, valueMapper, mergeFunction): mergeFunction: is used if there are conflicting keys in the map.

numbers
  .collect(Collectors.toMap(
    Function.identity(),
    i -> i * 100,
    (oldV, newV) -> newV       // use new value in case of conflict
  ));

• groupingBy(keyExtractor): groups a stream into a Map based on a given function

Map<String, List<Employee>> byDept
  = employees.stream()
      .collect(Collectors.groupingBy(Employee::getDepartment));

Asynchronous Programming

• Pros: Allows multiple things to happen at the same time. It doesn't block the execution flow

• Service-Oriented Architecture (SOA): each service will have to talk to other systems to reach its objective
• Each request is handled on a separate "thread"
• Cons: Codes get convoluted. Shared state and mutable objects should be avoided/used in a "thread-safe" manner

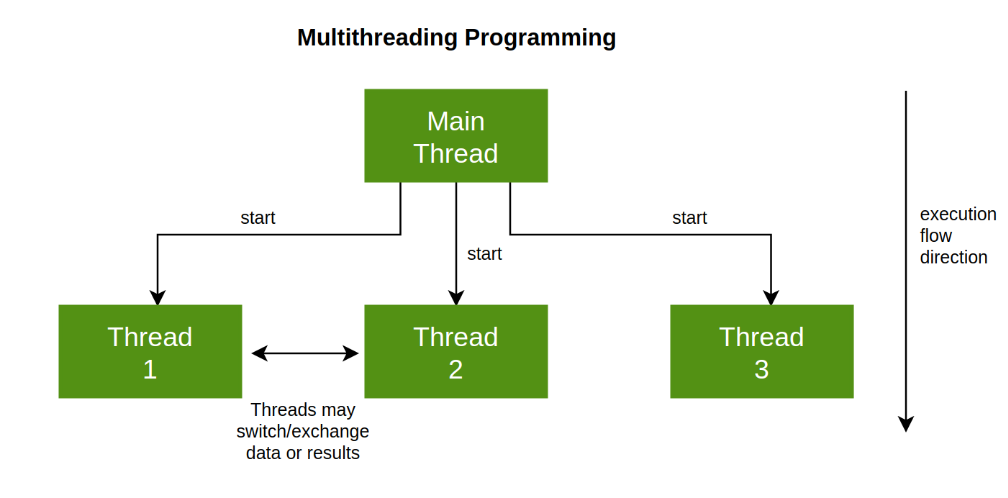

Thread

• A unit of execution within a process
• Each thread runs a path of execution through the program
• When starting an application, execution begins on the Main Trhead
• Additional trheads may be spun off to execute code in parallel to the main thread
  • e.g. The main thread gets a list of files on the file system, then spins off 10 threads to each process 1/10th of the files
• The program will exit when the Main Thread commpletes execution
  • Must explicitly tell the Main Thread to wait for the completion of the "child" threads

class MyCustomThread extends Thread {
  @Override
  public void run() {
    for (int i = 0; i < 10; i++) {
      System.out.println("From Thread: " + i);
     }
    }
  }
}

MyCustomThread thread = new MyCustomThread();

thread.start();

class Printer extends Thread {
  private int id;
  public Printer(int id) { this.id = id; }

  @Override
  public void run() {
    for (int i = 1; i <= 3; i++) {
      System.out.println("[Thread " + id + "]: " + i);
    }
  }
}

Printer printer1 = new Printer(1);
Printer printer2 = new Printer(2);
printer1.start();
printer2.start();

printer1.join();
printer2.join();

• Thread vvs Runnable
  • Implementing Runnable interface is generally considered to be better
  • Runnable favors composition over inheritance
  • Runnable allows execution to be handled by an ExecutorService
  • Java doesn't support multiple inheritance. Runnable alllos to extend fro ma superclass besides Thread

Thread Pool

• a way to reuse previously created threads in order to execute tasks
• certain predefined limits are established (e.g. number of threads) prior to the creation of the pool

// Threadpool with 1 Thread
Executor e1 = Executors.newSingleThreadExecutor()
Executor e2 = Executors.newFixedThreadPool(10)

ExecutorService

• An interface designed to allow you to easily submit tasks which need to be executed
• Contains methods for controlling the progress of the tasks which are submitted to it
• Allows a Runnable or a Callable to be submitted and executed asyncchronously on a Threadpool
• Maintains a blocking queue which can take requests and execute them as resources become available

ExecutorService ex = Executors.newSingleThreadExecutor();
ex.submit(() -> {
  for (int i = 0; i < 10; i++) {
    System.out.println("From Runnable: " + i);
  }
});

Callable & Future

• Runnable interface cannot produce a result
• Callable interface allows you to execute async code, but also provides utilities to return a result
• The result returned by Callable is a Future
• It can also throw exceptions fro the block of computation

Future

• Represents the result of an async computation
• Provides methods to retrieve result from an async computation and also to check its status
• Methods offered by the Future Interface: get(), get(timeout, timeUnit), isDone(), cancel(), isCancelled()
  • get(): try to avoid using it. Waits indefinitely for the result of the async computation
  • get(timeout, timeUnit): similar to get(), but only waits for a specific time

Callable<Integer> c =
  () -> IntStream
          .range(1, 1000)
          .reduce()
          .getAsInt();
ExecutorService ex = Executors.newSingleThreadExecutor();
Future<Integer> f = ex.submit(c);

System.out.println("Is it done: " + f.isDone());  // could be True or False
System.out.println("Result: " + f.get());         // will wait for the result of the async computation
System.out.println("Is it done: " + f.isDone());  // will always be True

• Is old and busted
• CompletableFuture is new
• Won't deal with Future or Executors directly. Will instead interact with libraries returning them

CompletableFuture

• Implements the Future and CompletionStage interfaces
• Allows you to create complex chains of async events
• Functions should return a CompletionStage (the interface)
• CompletableFuture class has utilities for easily returning objects through CompletionStage interface
• Chained CompletionStages allow us to implement series of async tasks which depend on the results of one another
• thenApply: takes the result of a CompletionStage, then returns its own result

public CompletionStage<List<String>> getArtistGenres(final String artistId) {
  CompletionStage<Artist> artistFuture = metadataClient.getArtist(artistId);

  return artistFuture.thenApply(artistMetadata -> {
    reutrn artistMetadata.genres();
  });
}

• thenComposeAsync: takes the result of a CompletionStage, then returns another CompletionStage whcih gets unnestest into the parent

public CompletionStage<Map<String, String>> getArtistGenresWithDetails(final String artistId) {
  CompletionStage<Artist> artistGenresFuture = getArtistGenres(artistId);

  return artistGenresFuture.thenComposeAsync(artistGenreList -> {
    // getGenreDetails returns CompletionStage<Map<String, String>>
    reutrn genreClient.getGenreDetails(artistGenreList);
  });
}

• thenCompose: chain CompletionStage within thenCompose

public CompletionStage<Map<String, String>> getArtistGenresWithDetails(final String artistId) {
  CompletionStage<Artist> artistGenresFuture = getArtistGenres(artistId);

  return artistGenresFuture.thenCompose(artistGenreList -> {
    // getGenreDetails returns CompletionStage<Map<String, String>>
    return genreClient.getGenreDetails(artistGenreList)
            .thenApply(genreDetails -> {
                return genreDetails.entrySet().stream()
                          .map()
                          .collect();
            });
  });
}

• thenCombine: execute two CompletionStages in parallel and take action on the result of both futures when they complete

• thenAccept: consumes the result of a CompletionStage, but doesn't return anything

• supplyAsync/completedFuture: create a CompletableFuture from a synchronous object/task

  }); }

• .exceptionally(): Exception Handling

  return artistFuture.thenApply()
          .exceptionally(e -> {
            LOG.error(e);
            return List.of();  // returns an empty list
          });
