Install a F5 XC CE Node using KVM on AWS

Some customer design requires to deploy a F5 Distributed Cloud (XC) Customer Edge (CE) in an internal network. CE nodes has no Public IP address, no AWS Internet Gateway but Internet access is allowed through an egress gateway: for example a FW or an egress Web Proxy hosted in an egress VPC.

The use case could be to have a CE for discovering API endpoints of published applications but the CE must seat between an existing Reverse-Proxy and the API GW in the data path.

Egress doors (FW and explicit web proxy) can be in a hosted in the same VPC.

This guide described the solution the solution for AWS: deploy CE nodes using KVM on a bare metal server on AWS.

If the CE is allowed to have a Public IP Address or an Internet access through an Internet Gateway, NAT Gateway or a Virtual Private Gateway, use the native CE deployment in XC Console AWS Site.

Contents

Sources

Prerequisites

AWS

At least one interface: A VPC with at least one Subnet
Internet reachability: The Routing Table attached to the Subnet has a default route via a Transit Gateway or an egress security service
Internet connectivity to XC Console: The egress security service allows Google Registry domain in the Allowed Domains listed here.
Explicit HTTP proxy: An explicit HTTP proxy is present in your infrastructure, for example http://10.0.8.163:8080. Configuration guide on BIG-IP here. The web proxy allows the Allowed Domains listed here.
Amazon EC2 Bare Metal Instance type i3.metal: i3.metal allows the operational system to be executed directly on the underlying hardware.
Storage: 100 GB minimum

XC

Tenant: a POC or a Production tenant with an admin role in the Multi-Cloud Network Connect service (System namespace)
Site Token: Follow the chapter here
EULA: By proceeding with the installation, download and/or access and use, as applicable, of the Distributed Cloud Services software, and/or Distributed Cloud Services platform, you acknowledge that you have read, understand, and agree to be bound by this agreement.

Deployment guide

1. Create an AWS i3.metal instance

AMI: Ubuntu, 20.04 LTS, amd64 focal image
Instance type: i3.metal
Key pair name: use your own key pair
Network settings:
- VPC: select an existing VPC
- Subnet: select an existing Subnet
- Auto-assign public IP: Disable
- Firewall: create or select an existing Security Group that allows at least Internet connectivity to XC Console (see Prerequisites)
- Storage: 100 GiB gp2 volume at least

2. Access to your AWS i3.metal instance

Connect to i3.metal instance using SSH

ssh -i my-private-ssh-key.pem ubuntu@<IP-ADDRESS>

Elevate your privilege:

sudo su -
cd /home/ubuntu/

Optionally, you can check for Virtualization Support, as described below, but an i3.metal instance type supports it.

Install a package to check for Virtualization Support

apt install cpu-checker

Check for Virtualization Support

kvm-ok

INFO: /dev/kvm exists
KVM acceleration can be used

3. Install Packages

apt update
apt install qemu qemu-kvm libvirt-daemon-system libvirt-clients bridge-utils virt-manager

4. Configure HugePages

Set value for parameter GRUB_CMDLINE_LINUX:

vi /etc/default/grub

(...)
GRUB_CMDLINE_LINUX="default_hugepagesz=2M hugepagesz=2M hugepages=1200"

Update the configuration to make HugePages effective.

update-grub
grub-mkconfig -o /boot/grub/grub.cfg

In AWS console, change the Instance state to Reboot instance
Wait 5mn then connect again using SSH
Check the HugePages configuration after the host reboot:

cat /proc/meminfo | grep Huge

AnonHugePages:         0 kB
ShmemHugePages:        0 kB
FileHugePages:         0 kB
HugePages_Total:    1200
HugePages_Free:     1200
HugePages_Rsvd:        0
HugePages_Surp:        0
Hugepagesize:       2048 kB
Hugetlb:         2457600 kB

5. Create a Virtual Network

Create the specification for a new virtual network. In the underlay network conflicts, set the network address field with a different subnet.

touch new_libvirt_network.xml
vi new_libvirt_network.xml
<network>
  <name>virtualnetwork1</name>
  <forward mode='nat'>
    <nat>
      <port start='1024' end='65535'/>
    </nat>
  </forward>
  <bridge name='bridge1' stp='on' delay='0'/>
  <ip address='192.168.122.1' netmask='255.255.255.0'>
    <dhcp>
      <range start='192.168.122.2' end='192.168.122.254'/>
    </dhcp>
  </ip>
</network>

Define the new virtual network

virsh net-define new_libvirt_network.xml

Destroy the existing default virtual network

virsh net-destroy default

Start the virtual network and enable it for autostart.

virsh net-start virtualnetwork1
virsh net-autostart virtualnetwork1

List the libvirt networks to verify that the virtual network was created.

virsh net-list

 Name              State    Autostart   Persistent
----------------------------------------------------
 virtualnetwork1   active   yes         yes

Optionally, list your bridge devices.

brctl show

bridge name     bridge id               STP enabled     interfaces
bridge1         8000.525400e4f9db       yes             bridge1-nic

6. Install Node using Terminal

Copy the URI to the latest ISO file here
Download the latest ISO file using the copied URI

wget https://downloads.volterra.io/dev/images/centos/7.2009.27-202211040823/vsb-ves-ce-certifiedhw-generic-production-centos-7.2009.27-202211040823.1667791030.iso

Create a Virtual Disk Image (VDI) file

qemu-img create /var/lib/libvirt/images/volterra.qcow 45G

Create a new virtual machine using the latest ISO file downloaded

virt-install \
    --name Volterra \
    --memory 28000 \
    --vcpus=8 \
    --network network=virtualnetwork1,model=virtio \
    --accelerate \
    --disk path=/var/lib/libvirt/images/volterra.qcow,bus=virtio,cache=none,size=64 \
    --cdrom /home/ubuntu/vsb-ves-ce-certifiedhw-generic-production-centos-7.2009.27-202211040823.1667791030.iso \
    --noautoconsole \
    --noreboot

Wait 5mn for the installation. At the end, the VM will be in status shut down

virsh list --all

 Id   Name       State
--------------------------
 1    Volterra   shut down

Start the virtual machine

virsh start Volterra

Verify the status of the virtual machine

virsh list --all

 Id   Name       State
--------------------------
 1    Volterra   running

6. Configure Node

Due to untimely throttling on Google Container Registry side from client NATed behind an AWS Public IP, the installation of VPM (/usr/bin/docker pull gcr.io/volterraio/vpm:v1-0) could take 4 hours (240MB). Console access during the installation in progress will show this error -- admin: no shell: No such file or directory
Connect to the virtual machine using SSH or the Console access: username: admin, password: Volterra123

Console access

virsh console 1

Connected to domain Volterra
Escape character is ^]

UNAUTHORIZED ACCESS TO THIS DEVICE IS PROHIBITED
All actions performed on this device are audited
master-0 login:

SSH access

virsh domifaddr Volterra
 Name       MAC address          Protocol     Address
-------------------------------------------------------------------------------
 vnet0      52:54:00:51:ff:32    ipv4         192.168.122.161/24

ssh admin@192.168.122.161

Configure the Network options if you use an Explicit Web Proxy

>>> configure-network

Configure the main options:
- Latitude and Longitude: the GPS location of your AWS region
- Token: see chapter Prerequisites
- site name: choose your own name ? Use a proxy: http://10.0.8.163:8080 # ToDo update the documentation by copying/pasting the right output

>>> configure
? What is your token? 950d6972-e415-46c2-85dc-6fa42b7f42a2
? What is your site name? [optional] ce-i3metal
? What is your hostname? [optional] master-0
? What is your latitude? [optional] 48.866667
? What is your longitude? [optional] 2.333333
? What is your default fleet name? [optional]
? Use a proxy: http://10.0.8.163:8080 # ToDo update the documentation by copying/pasting the right output
? Select certified hardware: kvm-voltmesh
? Select primary outside NIC: eth0
? Confirm configuration? Yes

7. Register the Node

Go to your F5 XC Console
Navigate to the Registrations menu and accept the pending registration by click the blue checkmark

A new windows opens. Do not change any value, just click on Save and Exit.
Wait 1 minute then check site status that should be in PROVISIONNING state

Using the the SSH connection at step 6, follow the installation logs

>>> log vpm

Wait 15 minute then check site status that should be in ON LINE state

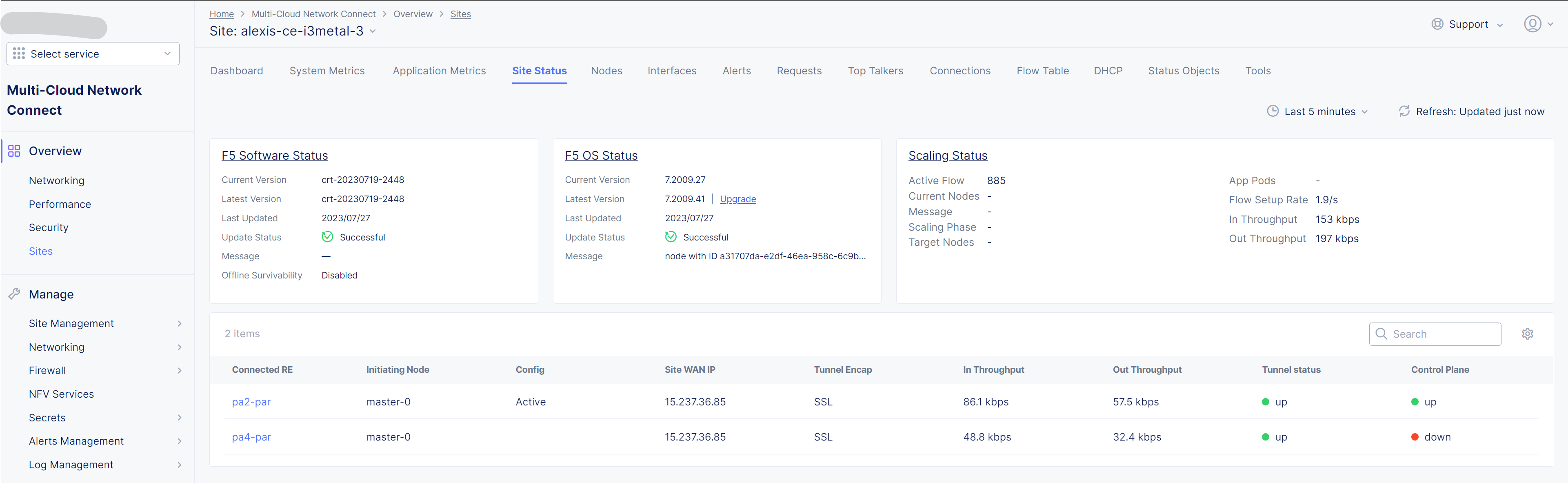

Check detailed site Status, if IPsec is used for VPN tunnels or SSL. SSL is used if IPsec port are not allowed on your FW or if your are using a Transparent Proxy.

Click on Upgrade if the installed OS is not the latest
Your SSH connection will be closed during upgrade. Connect gain in order to check installation logs.

>>> log vpm

Wait 15mn, you should have the status UP for Control Plane and Data Plane

Troubleshooting tips: restart the VM if the status is DOWN, then check vpm logs
- shutdown a VM: virsh shutdown Volterra
- list all VMs: virsh list --all
- start a VM: virsh start Volterra
- connect to a console access line: virsh console X
- delete VM and eliminate all associated storage: virsh undefine --domain Volterra --remove-all-storage
- remove VM storage: rm -rf /var/lib/libvirt/images/volterra.qcow
- other tips here

Forward incoming connections

1. Define a static IP for the Node

Show the mac address of the Node: virsh domifaddr Volterra

Name       MAC address          Protocol     Address

------------------------------------------------------------------------------- vnet0 52:54:00:2b:3a:33 ipv4 192.168.122.30/24

Stop the Node VM: virsh shutdown Volterra
Edit the Bridge to set static IP address for the Node and add the <host> line. virsh net-edit virtualnetwork1

<network>
  <name>virtualnetwork1</name>
  <forward mode='nat'>
    <nat>
      <port start='1024' end='65535'/>
    </nat>
  </forward>
  <bridge name='bridge1' stp='on' delay='0'/>
  <ip address='192.168.122.1' netmask='255.255.255.0'>
    <dhcp>
      <range start='192.168.122.2' end='192.168.122.254'/>
      <host mac="52:54:00:2b:3a:33" name="Volterra" ip="192.168.122.30"/>
    </dhcp>
  </ip>
</network>

2. Expose a service

The objective is to redirect the HTTPS (TCP/443) service to the Node VM.

Create and set the variables: GUEST_IP GUEST_PORT HOST_PORT: vi /etc/libvirt/hooks/qemu

if [ "${1}" = "Volterra" ]; then

   # Update the following variables to fit your setup
    GUEST_IP="192.168.122.30"
    GUEST_PORT="443"
    HOST_PORT="443"

   if [ "${2}" = "stopped" ] || [ "${2}" = "reconnect" ]; then
    /sbin/iptables -D FORWARD -o bridge1 -p tcp -d $GUEST_IP --dport $GUEST_PORT -j ACCEPT
    /sbin/iptables -t nat -D PREROUTING -p tcp --dport $HOST_PORT -j DNAT --to $GUEST_IP:$GUEST_PORT
   fi
   if [ "${2}" = "start" ] || [ "${2}" = "reconnect" ]; then
    /sbin/iptables -I FORWARD -o bridge1 -p tcp -d $GUEST_IP --dport $GUEST_PORT -j ACCEPT
    /sbin/iptables -t nat -I PREROUTING -p tcp --dport $HOST_PORT -j DNAT --to $GUEST_IP:$GUEST_PORT
   fi
fi

Make this script executable

chmod +x /etc/libvirt/hooks/qemu

Show configuration of Forwarding and NATing table before applying the change

iptables -L FORWARD -nv --line-number
iptables -t nat -L PREROUTING -n -v --line-number

Restart the libvirtd service

systemctl restart libvirtd.service

Start the Node

virsh start Volterra

Show configuration of Forwarding and NATing table after the VM is deployed

root:~# iptables -L FORWARD -nv --line-number

Chain FORWARD (policy ACCEPT 0 packets, 0 bytes)
num   pkts bytes target     prot opt in     out     source               destination
1       30  1975 ACCEPT     tcp  --  *      bridge1  0.0.0.0/0            192.168.122.30       tcp dpt:443
2      15M   10G DOCKER-USER  all  --  *      *       0.0.0.0/0            0.0.0.0/0
3      15M   10G DOCKER-ISOLATION-STAGE-1  all  --  *      *       0.0.0.0/0            0.0.0.0/0
4        0     0 ACCEPT     all  --  *      docker0  0.0.0.0/0            0.0.0.0/0            ctstate RELATED,ESTABLISHED
5        0     0 DOCKER     all  --  *      docker0  0.0.0.0/0            0.0.0.0/0
6        0     0 ACCEPT     all  --  docker0 !docker0  0.0.0.0/0            0.0.0.0/0
7        0     0 ACCEPT     all  --  docker0 docker0  0.0.0.0/0            0.0.0.0/0
8      15M   10G LIBVIRT_FWX  all  --  *      *       0.0.0.0/0            0.0.0.0/0
9      15M   10G LIBVIRT_FWI  all  --  *      *       0.0.0.0/0            0.0.0.0/0
10   7813K 2427M LIBVIRT_FWO  all  --  *      *       0.0.0.0/0            0.0.0.0/0


#------------------------------------------------------------------------------------------------------------------#

root:~# iptables -t nat -L PREROUTING -n -v --line-number

Chain PREROUTING (policy ACCEPT 9505 packets, 609K bytes)
num   pkts bytes target     prot opt in     out     source               destination
1       35  2100 DNAT       tcp  --  *      *       0.0.0.0/0            0.0.0.0/0            tcp dpt:443 to:192.168.122.30:443
2    10943  784K DOCKER     all  --  *      *       0.0.0.0/0            0.0.0.0/0            ADDRTYPE match dst-type LOCAL

3. Configure a simple service

The objective is to create an HTTP Load Balancer that is listening on port HTTP TCP/443 and returns a page 200 OK. Then test the flow.

In XC Console: Web App & API Protection >> Manage >> Load Balancers >> HTTP Load Balancers >> Add
Copy the configuration below, change the values <MyNameSpace> <MyTenantName> <MySiteName>

metadata:
  name: test-aws
  namespace: <MyNameSpace>
  labels: {}
  annotations: {}
  disable: false
spec:
  domains:
  - test.me
  http:
    dns_volterra_managed: false
    port: 443
  downstream_tls_certificate_expiration_timestamps: []
  advertise_custom:
    advertise_where:
    - site:
        network: SITE_NETWORK_INSIDE_AND_OUTSIDE
        site:
          tenant: "<MyTenantName>"
          namespace: system
          name: "<MySiteName>"
          kind: site
      use_default_port: {}
  default_route_pools: []
  routes:
  - direct_response_route:
      http_method: ANY
      path:
        prefix: "/"
      headers: []
      incoming_port:
        no_port_match: {}
      route_direct_response:
        response_code: 200
        response_body: OK
  disable_waf: {}
  add_location: true
  no_challenge: {}
  user_id_client_ip: {}
  disable_rate_limit: {}
  waf_exclusion_rules: []
  data_guard_rules: []
  blocked_clients: []
  trusted_clients: []
  ddos_mitigation_rules: []
  no_service_policies: {}
  round_robin: {}
  disable_trust_client_ip_headers: {}
  disable_ddos_detection: {}
  disable_malicious_user_detection: {}
  disable_api_discovery: {}
  disable_bot_defense: {}
  disable_api_definition: {}
  disable_ip_reputation: {}
  disable_client_side_defense: {}
  graphql_rules: []
  protected_cookies: []

Test from a remote client that is authorized to communicate with the Node

curl test.me:443 --resolve test.me:443:10.0.134.131 -vvv
* Added test.me:443:10.0.134.131 to DNS cache
* Rebuilt URL to: test.me:443/
* Hostname test.me was found in DNS cache
*   Trying 10.0.134.131...
* Connected to test.me (10.0.134.131) port 443 (#0)
> GET / HTTP/1.1
> Host: test.me:443
> User-Agent: curl/7.47.1
> Accept: */*
>
< HTTP/1.1 200 OK
< content-length: 2
< content-type: text/plain
< date: Fri, 13 Oct 2023 07:16:03 GMT
< server: volt-adc
<
* Connection #0 to host test.me left intact
OK

Tips to troubleshoot iptable: here

nergalex / f5-xc-ce-kvm-aws
