Open Telemetry Auto Traces - Example

Project Architecture

Isolated Services - Spring Cloud Gateway Routes

Isolated Services - REST Methods

Isolated Services - Data Layers

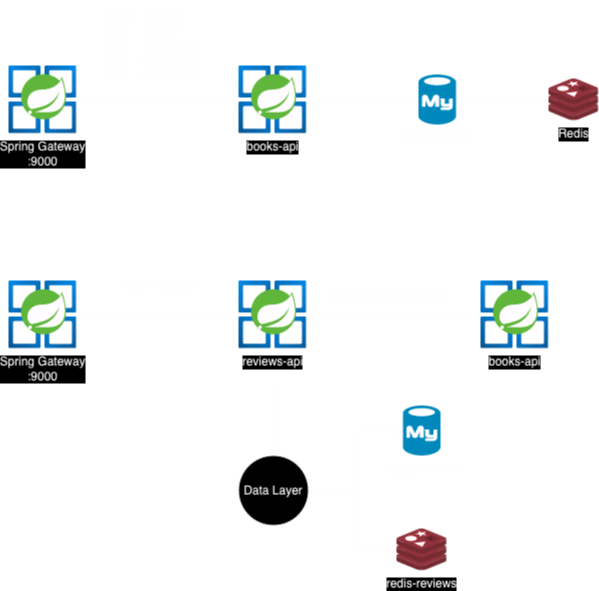

Integrated Services - Books / Reviews

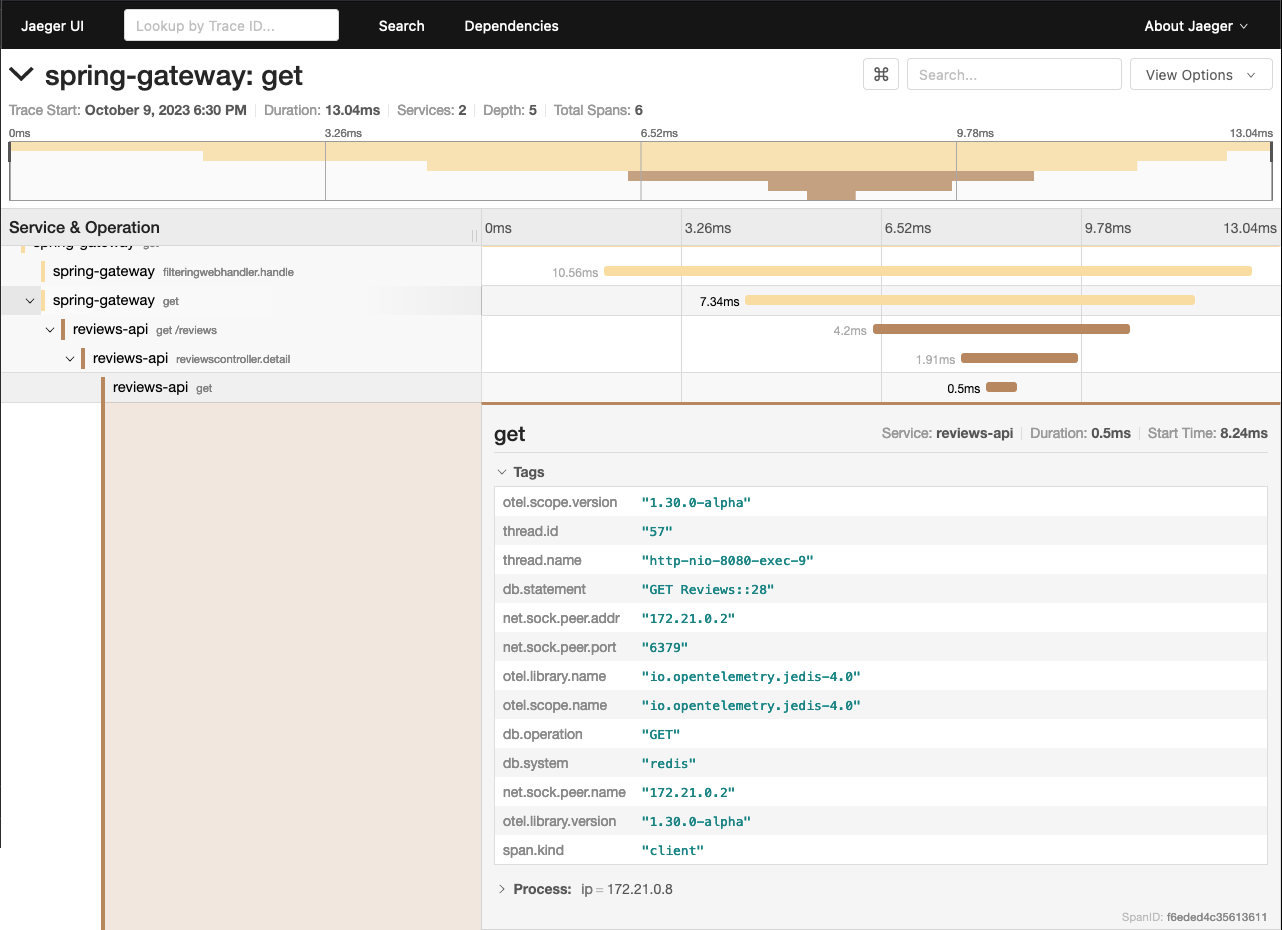

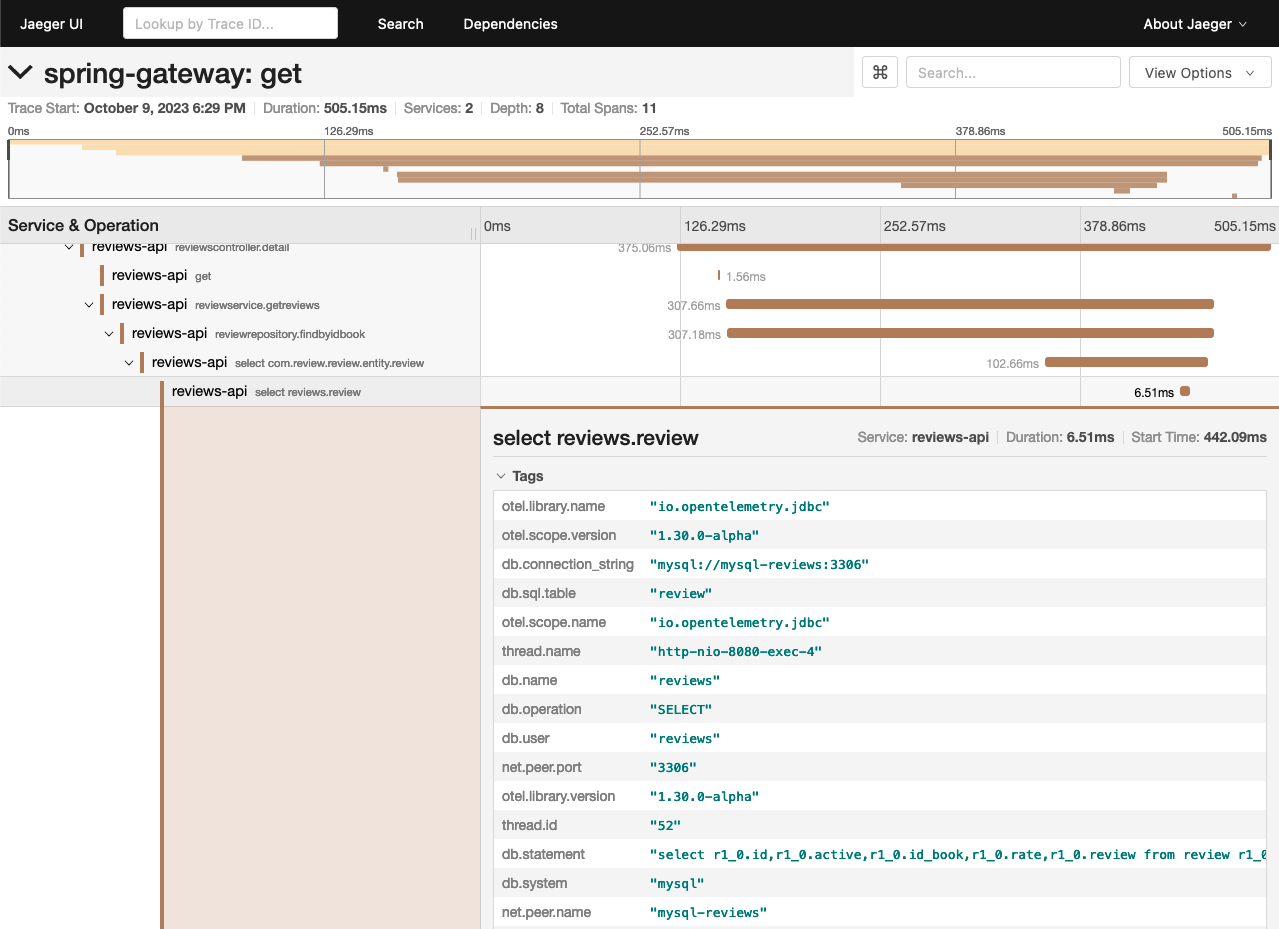

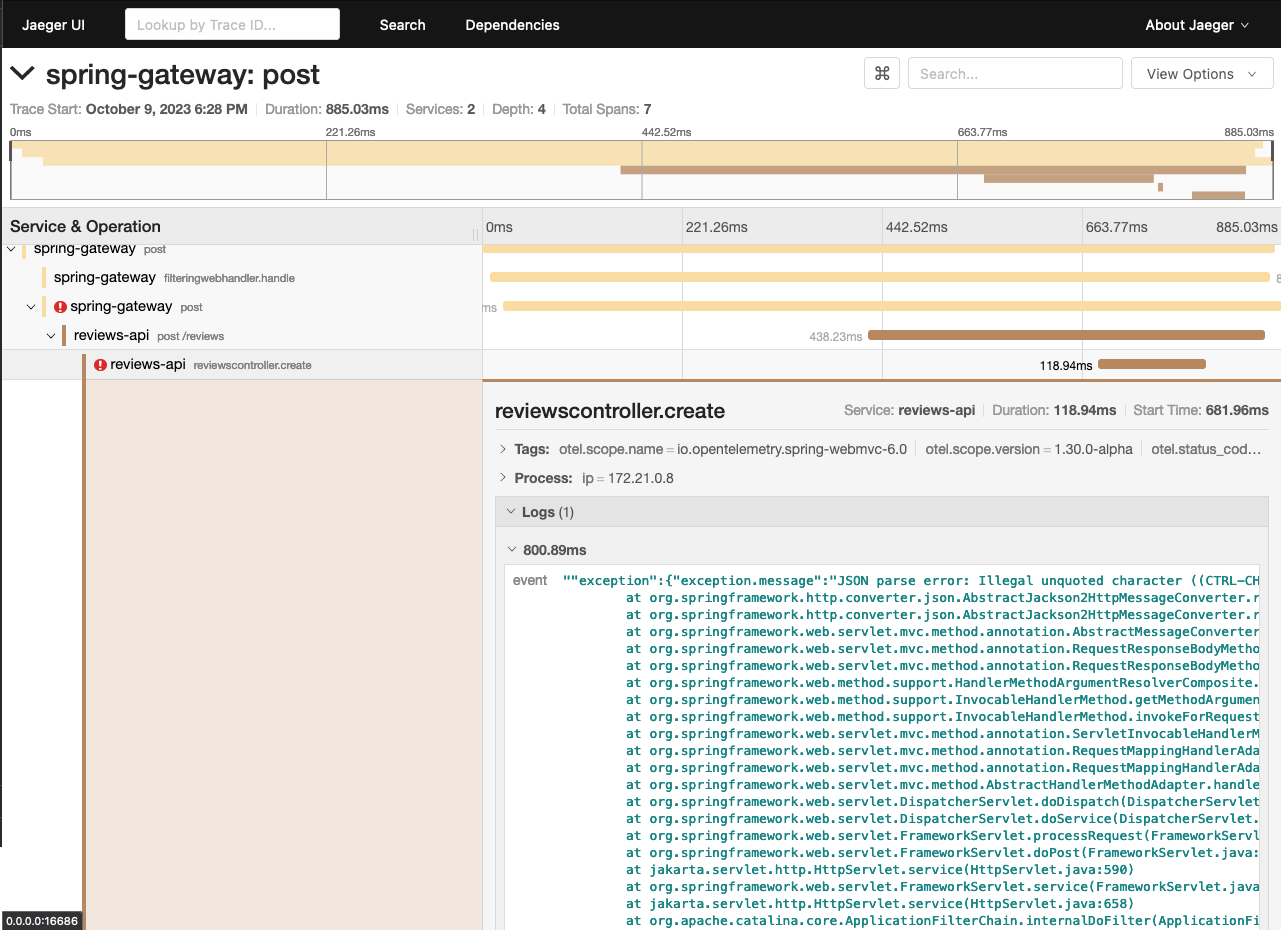

Example Trace - Autoconfiguration

Dockerfile

FROM openjdk:21-jdk

WORKDIR /app

COPY .mvn .mvn
COPY mvnw .
COPY pom.xml .
COPY src src

RUN ./mvnw clean package


# ADD OTEL Java Agent
ADD https://github.com/open-telemetry/opentelemetry-java-instrumentation/releases/latest/download/opentelemetry-javaagent.jar opentelemetry-javaagent.jar

# Add Agent Path on JAVA_TOOL_OPTIONS
ENV JAVA_TOOL_OPTIONS="-javaagent:./opentelemetry-javaagent.jar"

RUN mv target/*.jar app.jar

EXPOSE 8080

CMD ["java", "-jar", "app.jar"]

Maven Dependencies

		<dependency>
			<groupId>io.opentelemetry.instrumentation</groupId>
			<artifactId>opentelemetry-instrumentation-annotations</artifactId>
			<version>1.30.0</version>
		</dependency>

Environment Variables

    // ...
    environment:
      OTEL_SERVICE_NAME: books-api
      OTEL_TRACES_EXPORTER: zipkin
      OTEL_EXPORTER_ZIPKIN_ENDPOINT: http://jaeger:9411/api/v2/spans
      OTEL_METRICS_EXPORTER: none
    // ...

Annotate with @WithSpan and @SpanAttribute

    @WithSpan
    public BookResponse fetchBook(@SpanAttribute("id_book") Long id_book) {
        try {
            return bookClient.getBookById(id_book);
        } catch (Exception e) {
            System.out.println(e.getMessage());
            return null;
        }
    }

    @WithSpan
    @Cacheable(value = "Reviews", key = "#id_book")
    public List<Review> getReviews(@SpanAttribute("id_book") Long id_book) {
        List<Review> reviews = repository.findByIdBook(id_book);
        return reviews;
    }

Test Requests

❯ curl --request POST \
  --url http://0.0.0.0:9000/author \
  --header 'Content-Type: application/json' \
  --header 'User-Agent: insomnia/8.2.0' \
  --data '{
        "name": "Matheus Fidelis",
        "location": "Brazil",
        "birth": 1995
}' -i

HTTP/1.1 201 Created
transfer-encoding: chunked
Content-Type: application/json
Date: Mon, 09 Oct 2023 21:24:03 GMT

{"id":4,"name":"Matheus Fidelis","location":"Brazil","birth":1995,"active":true}

curl --request POST \
  --url http://0.0.0.0:9000/books \
  --header 'Content-Type: application/json' \
  --header 'User-Agent: insomnia/8.2.0' \
  --data '{
        "name": "As melhores do Ari Toledo",
        "year": 2012,
        "author_id": 4
}' -i

HTTP/1.1 201 Created
transfer-encoding: chunked
Content-Type: application/json
Date: Mon, 09 Oct 2023 21:26:42 GMT

{"id":28,"name":"As melhores do Ari Toledo","year":2012,"active":true,"author":{"id":4,"name":"Matheus Fidelis","location":"Brazil","birth":1995,"active":true}}

curl --request POST \
  --url http://0.0.0.0:9000/reviews \
  --header 'Content-Type: application/json' \
  --header 'User-Agent: insomnia/8.2.0' \
  --data '{
        "book_id": 28 ,
        "rate": 5,
        "review": "kkkkkkkk top dms slc man"
}' -i
HTTP/1.1 201 Created
transfer-encoding: chunked
Content-Type: application/json
Date: Mon, 09 Oct 2023 21:29:12 GMT

{"id":181,"rate":5.0,"book_id":28,"review":"kkkkkkkk top dms slc man","active":true

❯ curl --request GET \
  --url 'http://0.0.0.0:9000/reviews?book=28' \
  --header 'User-Agent: insomnia/8.2.0' -i
HTTP/1.1 200 OK
transfer-encoding: chunked
Content-Type: application/json
Date: Mon, 09 Oct 2023 21:30:15 GMT

[{"id":180,"rate":5.0,"review":"kkkkkkkk top dms slc man"},{"id":181,"rate":5.0,"review":"kkkkkkkk top dms slc man"}]
