In this project I render a sphere whith custom shader on it, that takes an hdr texture as paramter, the shader sets opacity to equal emmisive
then i take pixel data of the canvas and transform it in the same way i describe in hdr format tutorial
You can check out Demo on https://matheowis.github.io/threejs-canvas-save-as-hdr
You have to click download text twice to download the image, then open it in a software that supports hdr

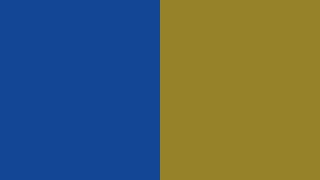

Lets say we want to save the image above to hdr format
Color(red, green, blue, emmisive)
leftColor = Color(20,70,150,128)
rightColor = Color(150,130,40,128)
Each file contains header, resolution and pixelData
var header = "FORMAT=32-bit_rle_rgbe\n"
var blankSpace = "\n";
var Resolution = "-Y 180 +X 320\n";
headers and ressolution have to be separated by empty line
Now lets take care of pixelData
We have to write each line of pixels starting from upper left image corner. First two bytes of each line have to be (2, 2) - that defines the format, which is adaptive run length encoding, another two bytes defines the length of pixel row in this situation its 320 so in bytes (1,64).
Now we can start writting pixel values
Wy start with amount of repetition, where 128 means 0, this part i couldn't really understand, but based on photoshop files, I found out that only positive values are used, so maximum repetition is 255 which means 127
We define each channel separately, start with all reds in the row,then greens and so on. reds:
255, 20, 161, 20, 255, 150, 161, 150,
greens:
255, 70, 161, 70, 255, 130, 161, 130,
blues:
255, 150, 161, 150, 255, 40, 161, 40,
emmisives:
255, 128, 255, 128, 194, 128
2, 2, 1, 64, 255, 20, 161, 20, 255, 150, 161, 150, 255, 70, 161, 70, 255, 130, 161, 130, 255, 150, 161, 150, 255, 40, 161, 40, 255, 128, 255, 128, 194, 128
You can save binary with new Uint8Array()
var text = header + blankSpace + Resolution;
var binary = new Uint8Array([pixelData]) // bytes that we created above
var blob = new Blob([text, binary], { type: "octet/stream" });
That blob contains image in hdr format
more info about hdr format at http://radsite.lbl.gov/radiance/refer/filefmts.pdf page 28
