VDSR-TensorFlow

Introduction

This repository is TensorFlow implementation of VDSR (CVPR16).

You can see more details from paper and author's project page

Project page : VDSR page
Paper : "Accurate Image Super-Resolution Using Very Deep Convolutional Network"

Network Structure

VDSR-TensorFlow/model/network.py

ILR denotes Interpolated Low Resolution image
SR denotes reconstructed super resolution image

Details

VDSR structures

Layer (# layers)	Filter size	Input Dimension	Output Dimension	Activation Function
Input Layer (1)	$3 \times 3$	1	64	ReLU
Hidden Layer (18)	$3 \times 3$	64	64	ReLU
Output Layer (1)	$3 \times 3$	64	1	-

ReLU (Rectified Linear Unit)

I/O

Input (LR)	Output (Residual)	Reconstructed (LR + Residual)

Training

Loss Function

_loss_function(self, reg_parameter) in VDSR-TensorFlow/model/___init__.py

Basic loss function

$Loss(W)=\frac{1}{2}||y-f(x)||^{2}$

Loss functions for residual learning

$Loss(W)=\frac{1}{2}||r-f(x)||^{2}$

Regularization
- L2 regularization
$reg(W)=\frac{\lambda}{2}\sum_{w \in W} {||w||^{2}}$
Notations
- : Weights in VDSR
- : ground truth (original high resolution image, HR)
- : interpolated low resolution image (ILR)
- : reconstructed super resolution image
- : residual between HR and ILR
- $\lambda$ : regularization parameter
  - $\lambda$ : 0.0001

Optimization

_optimization_function(self, grad_clip, momentum_rate) in VDSR-TensorFlow/model/___init__.py

Optimization Method
- Stochastic Gradient Descent (SGD) method [Wikipedia]
  - Momentum : 0.9
Weight Initialization
- He initialization [paper]
Learning Rate
- Extremely high value is used to speed-up convergence rate
- Initial Learning rate : 0.1
Learning Rate Decay
- Learning rate is decreased by factor of 10 for every 20 epochs
Adjustable Gradient Clipping
- Clip individual gradients to $[-\frac{\theta}{\gamma}, \frac{\theta}{\gamma}]$
  - $\theta$ denotes parameters for gradient clipping
  - $\gamma$ denotes learning rate
Epochs : 80

Data Set

Training Data

VDSR-TensorFlow/data/generate_dataset/train_data.m

291 images
- Download from Author's page [zip(train)]
Bicubic interpolation is used for LR data acquisition
Data Augmentations (Rotation, flip) were used
Scale Factor : $\times 2$ $\times 3$ , $\times 4$
Patch size : 41
Batch size : 64

Testing Data

VDSR-TensorFlow/data/generate_dataset/test_data.m

Set5, Set14, B100, Urban100
- Download from Author's page [zip(test)]
Bicubic interpolation is used for LR data acquisition
Scale Factor : $\times 2$ , $\times 3$ , $\times 4$

Results

Validation

PSNR performance plot on Set5

rotation=[0°, 90°], flip=[left / right], $\theta$ = 0.001


Scale 2	Scale 3	Scale 4

rotation=[0°, 90°], flip=[left / right], $\theta$ = 0.0009


Scale 2	Scale 3	Scale 4

rotation=[0°, 90°], flip=[left / right], $\theta$ = 0.0008


Scale 2	Scale 3	Scale 4

Objective Quality Assessment

Methods

Bicubic Interpolation
- imresize(..., ..., 'bicubic') in Matlab
VDSR (Original)
- Author's MatConvNet implementation [Code]
VDSR (TensorFlow)
- TensorFlow implementation
- Train Details for Comparison
  - Gradient Clipping parameter $\theta$ = 0.001
  - Data Augmentation
    - Rotation : 0°, 90°
    - Flip : left / right

Average PSNR/SSIM

PSNR (Peak Signal-to-Noise Ratio)

SSIM (Strutural SIMility)

rotation=[0°, 90°], flip=[left / right], $\theta$ = 0.001
Set5

scale	Bicubic	VDSR (Original)	VDSR(TensorFlow)
$\times 2$	33.68 / 0.9304	37.53 / 0.9586	37.07 / 0.9576
$\times 3$	30.40 / 0.8682	33.66 / 0.9213	33.20 / 0.9171
$\times 4$	28.43 / 0.8104	31.35 / 0.8838	30.90 / 0.8756

Set14

scale	Bicubic	VDSR (Original)	VDSR(TensorFlow)
$\times 2$	30.24 / 0.8693	33.05 / 0.9214	32.67 / 0.9108
$\times 3$	27.54 / 0.7746	29.78 / 0.8318	29.58 / 0.8295
$\times 4$	26.00 / 0.7029	28.02 / 0.7678	27.81 / 0.7627

B100

scale	Bicubic	VDSR (Original)	VDSR(TensorFlow)
$\times 2$	29.56 / 0.8442	31.90 / 0.8960	31.65 / 0.8943
$\times 3$	27.21 / 0.7401	28.83 / 0.7976	28.66 / 0.7952
$\times 4$	25.96 / 0.6697	27.29 / 0.7252	27.14 / 0.7217

Urban100

scale	Bicubic	VDSR (Original)	VDSR(TensorFlow)
$\times 2$	26.88 / 0.8410	30.77 / 0.9141	30.20 / 0.9087
$\times 3$	24.46 / 0.7358	27.14 / 0.8279	26.69 / 0.8178
$\times 4$	23.14 / 0.6588	25.18 / 0.7525	24.85 / 0.7406

rotation=[0°, 90°], flip=[left / right], $\theta$ = 0.0009
Set5

Bicubic	VDSR (Original)	VDSR(TensorFlow)
33.68 / 0.9304	37.53 / 0.9586	37.14 / 0.9574
30.40 / 0.8682	33.66 / 0.9213	33.29 / 0.9171
28.43 / 0.8104	31.35 / 0.8838	30.95 / 0.8755

Set14

Bicubic	VDSR (Original)	VDSR(TensorFlow)
30.24 / 0.8693	33.05 / 0.9214	32.74 / 0.9105
27.54 / 0.7746	29.78 / 0.8318	29.62 / 0.8291
26.00 / 0.7029	28.02 / 0.7678	27.84 / 0.7628

B100

Bicubic	VDSR (Original)	VDSR(TensorFlow)
29.56 / 0.8442	31.90 / 0.8960	31.69 / 0.8936
27.21 / 0.7401	28.83 / 0.7976	28.68 / 0.7947
25.96 / 0.6697	27.29 / 0.7252	27.15 / 0.7214

Urban100

Bicubic	VDSR (Original)	VDSR(TensorFlow)
26.88 / 0.8410	30.77 / 0.9141	30.29 / 0.9085
24.46 / 0.7358	27.14 / 0.8279	26.78 / 0.8186
23.14 / 0.6588	25.18 / 0.7525	24.90 / 0.7418

rotation=[0°, 90°], flip=[left / right], $\theta$ = 0.0008
Set5

Bicubic	VDSR (Original)	VDSR(TensorFlow)
33.68 / 0.9304	37.53 / 0.9586	37.08 / 0.9574
30.40 / 0.8682	33.66 / 0.9213	33.19 / 0.9166
28.43 / 0.8104	31.35 / 0.8838	30.88 / 0.8743

Set14

Bicubic	VDSR (Original)	VDSR(TensorFlow)
30.24 / 0.8693	33.05 / 0.9214	32.66 / 0.9105
27.54 / 0.7746	29.78 / 0.8318	29.54 / 0.8288
26.00 / 0.7029	28.02 / 0.7678	27.75 / 0.7617

B100

Bicubic	VDSR (Original)	VDSR(TensorFlow)
29.56 / 0.8442	31.90 / 0.8960	31.65 / 0.8940
27.21 / 0.7401	28.83 / 0.7976	28.66 / 0.7945
25.96 / 0.6697	27.29 / 0.7252	27.14 / 0.7209

Urban100

Bicubic	VDSR (Original)	VDSR(TensorFlow)
26.88 / 0.8410	30.77 / 0.9141	30.13 / 0.9076
24.46 / 0.7358	27.14 / 0.8279	26.68 / 0.8171
23.14 / 0.6588	25.18 / 0.7525	24.84 / 0.7402

Visual Quality

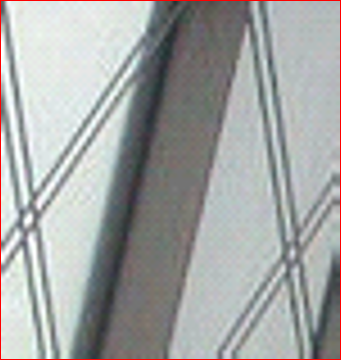

"img002" of Urban100 for scale factor $\times 2$
rotation=[0°, 90°], flip=[left / right], $\theta$ = 0.001

Ground Truth	Bicubic	VDSR(TensorFlow)

rotation=[0°, 90°], flip=[left / right], $\theta$ = 0.0009

Ground Truth	Bicubic	VDSR(TensorFlow)

rotation=[0°, 90°], flip=[left / right], $\theta$ = 0.0008

Ground Truth	Bicubic	VDSR(TensorFlow)

Usage

On Windows

run.bat

On Linux

run.sh

Prerequisites

Python 3

pip install -r requirements.txt
- tensorflow
- h5py
- numpy + mkl
- scipy
- Pillow
- skimage
Matlab
- For data generation and performance evaluation
- image processing toolbox

Training Command

in run.bat/sh
- python main.py --model_name=vdsr --is_train=True --grad_clip=1e-3

If you want to change other parameters for training, please see the file

VDSR-TensorFlow/model/configurations.py

Testing Command

in run.bat

python main.py --model_name=vdsr --is_train=False

Trained checkpoint in experiments

checkpoint
- Trained with $\theta$ = 0.001 [download]
- Trained with $\theta$ = 0.0009 [download]
- Trained with $\theta$ = 0.0008 [download]

Training dataset

vdsr_train.h5
- rotation=[0°, 90°], flip=[left / right] [download]

math equations are converted with upmath.me
