cesium-drawer

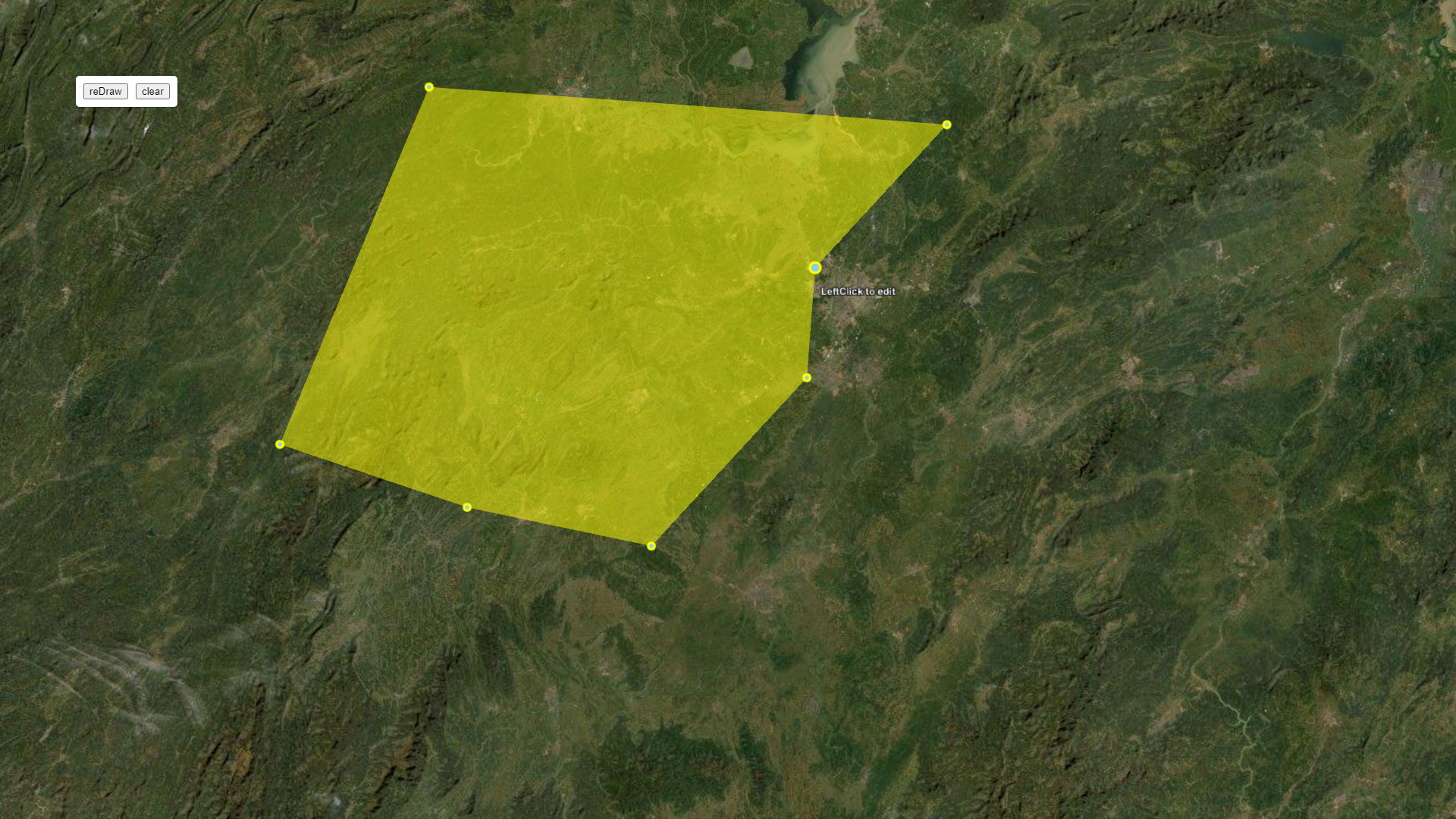

Draw and edit polygon shape for Cesium.

draw: Left Click to add point, right click cancel, left double click to complete drawing.
edit: After end drawing, you can click the point to edit, the edit method of editing is the same as that of drawing.
modify: Exposes methods for modifying polygons inside objects, so you can modify graphic information from the outside.

Install

The module is not perfect, so no NPM package has been released. You can copy the code in './src/utils/plugins' for your project.

Usage

import * as Cesium from "cesium";
import { PolygonDrawer } from '@/utils/plugins/CesiumDrawer';

const cesiumViewer = new Cesium.Viewer("cesiumContainer");
const DrawTool = PolygonDrawer(cesiumViewer);

// start draw
DrawTool.start();

// stop drwa
DrawTool.stop();

// clear graph
DrawTool.clear();

API

declare type PolygonDrawerOptions = {
    accuracy?: number;
    once?: boolean;
    retainGeo?: boolean;
    positions?: Cartesian3[];
    callback?: (coors: number[][]) => void;
    posChange?: (coors: number[][]) => void;
    tips?: {
        leftClick?: string;
        rightClick?: string;
        doubleClick?: string;
        edit?: string;
    };
};
export default class PolygonDrawer {
    get status(): "INIT" | "START" | "END" | "EDITING" | "DESTROY";
    get isDestroy(): boolean;
    /**
     * Create a PolygonDrawer Class
     * @param viewer cesium viewer
     * @param [options.accuracy] lonlat number accuracy.
     * @param [options.once] If continue to draw the next polygon.
     * @param [options.retainGeo] If retain polygon geo after drawing complete.
     * @param [options.positions] The object onto which to store the position Array.
     * @param [options.callback] callback funciton after drawing complete.
     * @param [options.posChange] callback funciton after position array changed.
     * @param [options.tips] tip labels text config.
     * @example
     * const DrawTool = new PolygonDrawer(viewer, {
        callback: (result) => {
          console.log(result);
        },
        posChange: (coors) => {
          console.log(coors)
        },
        tips: {
          leftClick: intl.formatMessage({ id: 'drawer.leftClick' }),
          rightClick: intl.formatMessage({ id: 'drawer.rightClick' }),
          doubleClick: intl.formatMessage({ id: 'drawer.doubleClick' }),
          edit: intl.formatMessage({ id: 'drawer.edit' }),
        }
      })
     */
    constructor(viewer: Viewer, options?: PolygonDrawerOptions);
    /**
     * 添加一个点
     * @param index 点的下标
     * @param pos 点的经纬度
     */
    addOnePosition: (index: number, pos: number[]) => boolean;
    /**
     * 改变一个点的坐标信息
     * @param index 点下标
     * @param pos 位置[经纬度]
     * @returns boolean
     */
    changeOnePosition: (index: number, pos: number[]) => boolean;
    /**
     * 移除一个点
     * @param index 点的下标
     * @returns {boolean} 是否移除成功
     */
    removeOnePosition: (index: number) => boolean;
    /**
     * 将一个点设置为活动点
     * @param index 点的下标
     */
    activeOnePosition: (index: number) => void;
    /**
     * 开始绘制多边形
     */
    start(): void;
    /**
     * cesium坐标转经纬度
     * @param cartesian
     * @returns [lon, lat]
     */
    cartesian2lonlat: (cartesian: Cartesian3) => number[];
    /**
     * 结束绘制
     * @returns boolean
     */
    clear(): void;
    destory(): void;
}
