dice-group / dice-embeddings

Hardware-agnostic Framework for Large-scale Knowledge Graph Embeddings

DICE Embeddings: Hardware-agnostic Framework for Large-scale Knowledge Graph Embeddings

Knowledge graph embedding research has mainly focused on learning continuous representations of knowledge graphs towards the link prediction problem. Recently developed frameworks can be effectively applied in a wide range of research-related applications. Yet, using these frameworks in real-world applications becomes more challenging as the size of the knowledge graph grows.

We developed the DICE Embeddings framework (dicee) to compute embeddings for large-scale knowledge graphs in a hardware-agnostic manner. To achieve this goal, we rely on

1. Pandas & Co. to use parallelism at preprocessing a large knowledge graph,
2. PyTorch & Co. to learn knowledge graph embeddings via multi-CPUs, GPUs, TPUs or computing cluster, and
3. Huggingface to ease the deployment of pre-trained models.

Why Pandas & Co. ? A large knowledge graph can be read and preprocessed (e.g. removing literals) by pandas, modin, or polars in parallel. Through polars, a knowledge graph having more than 1 billion triples can be read in parallel fashion. Importantly, using these frameworks allow us to perform all necessary computations on a single CPU as well as a cluster of computers.

Why PyTorch & Co. ? PyTorch is one of the most popular machine learning frameworks available at the time of writing. PytorchLightning facilitates scaling the training procedure of PyTorch without boilerplate. In our framework, we combine PyTorch & PytorchLightning. Users can choose the trainer class (e.g., DDP by Pytorch) to train large knowledge graph embedding models with billions of parameters. PytorchLightning allows us to use state-of-the-art model parallelism techniques (e.g. Fully Sharded Training, FairScale, or DeepSpeed) without extra effort. With our framework, practitioners can directly use PytorchLightning for model parallelism to train gigantic embedding models.

Why Hugging-face Gradio? Deploy a pre-trained embedding model without writing a single line of code.

For more please visit dice-embeddings!

Installation

Click me!

Installation from Source

git clone https://github.com/dice-group/dice-embeddings.git
conda create -n dice python=3.10.13 --no-default-packages && conda activate dice && cd dice-embeddings &&
pip3 install -e .

or

pip install dicee

Download Knowledge Graphs

wget https://files.dice-research.org/datasets/dice-embeddings/KGs.zip --no-check-certificate && unzip KGs.zip

To test the Installation

python -m pytest -p no:warnings -x # Runs >114 tests leading to > 15 mins
python -m pytest -p no:warnings --lf # run only the last failed test
python -m pytest -p no:warnings --ff # to run the failures first and then the rest of the tests.

Knowledge Graph Embedding Models

To see available Models

1. TransE, DistMult, ComplEx, ConEx, QMult, OMult, ConvO, ConvQ, Keci
2. All 44 models available in https://github.com/pykeen/pykeen#models

For more, please refer to examples.

How to Train

To see a code snippet

To Train a KGE model (KECI) and evaluate it on the train, validation, and test sets of the UMLS benchmark dataset.

from dicee.executer import Execute
from dicee.config import Namespace
args = Namespace()
args.model = 'Keci'
args.scoring_technique = "KvsAll"  # 1vsAll, or AllvsAll, or NegSample
args.dataset_dir = "KGs/UMLS"
args.path_to_store_single_run = "Keci_UMLS"
args.num_epochs = 100
args.embedding_dim = 32
args.batch_size = 1024
reports = Execute(args).start()
print(reports["Train"]["MRR"]) # => 0.9912
print(reports["Test"]["MRR"]) # => 0.8155
# See the Keci_UMLS folder embeddings and all other files

where the data is in the following form

$ head -3 KGs/UMLS/train.txt
acquired_abnormality    location_of     experimental_model_of_disease
anatomical_abnormality  manifestation_of        physiologic_function
alga    isa     entity

A KGE model can also be trained from the command line

dicee --dataset_dir "KGs/UMLS" --model Keci --eval_model "train_val_test"

dicee automatically detects available GPUs and trains a model with distributed data parallels technique.

# Train a model by only using the GPU-0
CUDA_VISIBLE_DEVICES=0 dicee --dataset_dir "KGs/UMLS" --model Keci --eval_model "train_val_test"
# Train a model by only using GPU-1
CUDA_VISIBLE_DEVICES=1 dicee --dataset_dir "KGs/UMLS" --model Keci --eval_model "train_val_test"
# Train a model by using all available GPUs
dicee --dataset_dir "KGs/UMLS" --model Keci --eval_model "train_val_test"

Under the hood, dicee executes the run.py script and uses lightning as a default trainer.

# Two equivalent executions
# (1)
dicee --dataset_dir "KGs/UMLS" --model Keci --eval_model "train_val_test"
# (2)
CUDA_VISIBLE_DEVICES=0,1 python dicee/scripts/run.py --trainer PL --dataset_dir "KGs/UMLS" --model Keci --eval_model "train_val_test"

Similarly, models can be easily trained with torchrun

torchrun --standalone --nnodes=1 --nproc_per_node=gpu dicee/scripts/run.py --trainer torchDDP --dataset_dir "KGs/UMLS" --model Keci --eval_model "train_val_test"

You can also train a model in multi-node multi-gpu setting.

torchrun --nnodes 2 --nproc_per_node=gpu  --node_rank 0 --rdzv_id 455 --rdzv_backend c10d --rdzv_endpoint=nebula  dicee/scripts/run.py --trainer torchDDP --dataset_dir KGs/UMLS
torchrun --nnodes 2 --nproc_per_node=gpu  --node_rank 1 --rdzv_id 455 --rdzv_backend c10d --rdzv_endpoint=nebula dicee/scripts/run.py --trainer torchDDP --dataset_dir KGs/UMLS

Train a KGE model by providing the path of a single file and store all parameters under newly created directory called KeciFamilyRun.

dicee --path_single_kg "KGs/Family/family-benchmark_rich_background.owl" --model Keci --path_to_store_single_run KeciFamilyRun --backend rdflib --eval_model None

where the data is in the following form

$ head -3 KGs/Family/train.txt
_:1 <http://www.w3.org/1999/02/22-rdf-syntax-ns#type> <http://www.w3.org/2002/07/owl#Ontology> .
<http://www.benchmark.org/family#hasChild> <http://www.w3.org/1999/02/22-rdf-syntax-ns#type> <http://www.w3.org/2002/07/owl#ObjectProperty> .
<http://www.benchmark.org/family#hasParent> <http://www.w3.org/1999/02/22-rdf-syntax-ns#type> <http://www.w3.org/2002/07/owl#ObjectProperty> .

Continual Training: the training phase of a pretrained model can be resumed.

dicee --continual_learning KeciFamilyRun --path_single_kg "KGs/Family/family-benchmark_rich_background.owl" --model Keci --path_to_store_single_run KeciFamilyRun --backend rdflib --eval_model None

Apart from n-triples or standard link prediction dataset formats, we support ["owl", "nt", "turtle", "rdf/xml", "n3"]*. Moreover, a KGE model can be also trained by providing an endpoint of a triple store.

dicee --sparql_endpoint "http://localhost:3030/mutagenesis/" --model Keci

For more, please refer to examples.

Creating an Embedding Vector Database

To see a code snippet

Learning Embeddings

# Train an embedding model
dicee --dataset_dir KGs/Countries-S1 --path_to_store_single_run CountryEmbeddings --model Keci --p 0 --q 1 --embedding_dim 32 --adaptive_swa

Loading Embeddings into Qdrant Vector Database

# Ensure that Qdrant available
# docker pull qdrant/qdrant && docker run -p 6333:6333 -p 6334:6334      -v $(pwd)/qdrant_storage:/qdrant/storage:z      qdrant/qdrant
diceeindex --path_model "CountryEmbeddings" --collection_name "dummy" --location "localhost"

Launching Webservice

diceeserve --path_model "CountryEmbeddings" --collection_name "dummy" --collection_location "localhost"

Retrieve and Search

Get embedding of germany

curl -X 'GET' 'http://0.0.0.0:8000/api/get?q=germany' -H 'accept: application/json'

Get most similar things to europe

curl -X 'GET' 'http://0.0.0.0:8000/api/search?q=europe' -H 'accept: application/json'
{"result":[{"hit":"europe","score":1.0},
{"hit":"northern_europe","score":0.67126536},
{"hit":"western_europe","score":0.6010134},
{"hit":"puerto_rico","score":0.5051694},
{"hit":"southern_europe","score":0.4829831}]}

Answering Complex Queries

To see a code snippet

# pip install dicee
# wget https://files.dice-research.org/datasets/dice-embeddings/KGs.zip --no-check-certificate & unzip KGs.zip
from dicee.executer import Execute
from dicee.config import Namespace
from dicee.knowledge_graph_embeddings import KGE
# (1) Train a KGE model
args = Namespace()
args.model = 'Keci'
args.p=0
args.q=1
args.optim = 'Adam'
args.scoring_technique = "AllvsAll"
args.path_single_kg = "KGs/Family/family-benchmark_rich_background.owl"
args.backend = "rdflib"
args.num_epochs = 200
args.batch_size = 1024
args.lr = 0.1
args.embedding_dim = 512
result = Execute(args).start()
# (2) Load the pre-trained model
pre_trained_kge = KGE(path=result['path_experiment_folder'])
# (3) Single-hop query answering
# Query: ?E : \exist E.hasSibling(E, F9M167)
# Question: Who are the siblings of F9M167?
# Answer: [F9M157, F9F141], as (F9M167, hasSibling, F9M157) and (F9M167, hasSibling, F9F141)
predictions = pre_trained_kge.answer_multi_hop_query(query_type="1p",
                                                     query=('http://www.benchmark.org/family#F9M167',
                                                            ('http://www.benchmark.org/family#hasSibling',)),
                                                     tnorm="min", k=3)
top_entities = [topk_entity for topk_entity, query_score in predictions]
assert "http://www.benchmark.org/family#F9F141" in top_entities
assert "http://www.benchmark.org/family#F9M157" in top_entities
# (2) Two-hop query answering
# Query: ?D : \exist E.Married(D, E) \land hasSibling(E, F9M167)
# Question: To whom a sibling of F9M167 is married to?
# Answer: [F9F158, F9M142] as (F9M157 #married F9F158) and (F9F141 #married F9M142)
predictions = pre_trained_kge.answer_multi_hop_query(query_type="2p",
                                                     query=("http://www.benchmark.org/family#F9M167",
                                                            ("http://www.benchmark.org/family#hasSibling",
                                                             "http://www.benchmark.org/family#married")),
                                                     tnorm="min", k=3)
top_entities = [topk_entity for topk_entity, query_score in predictions]
assert "http://www.benchmark.org/family#F9M142" in top_entities
assert "http://www.benchmark.org/family#F9F158" in top_entities
# (3) Three-hop query answering
# Query: ?T : \exist D.type(D,T) \land Married(D,E) \land hasSibling(E, F9M167)
# Question: What are the type of people who are married to a sibling of F9M167?
# (3) Answer: [Person, Male, Father] since  F9M157 is [Brother Father Grandfather Male] and F9M142 is [Male Grandfather Father]

predictions = pre_trained_kge.answer_multi_hop_query(query_type="3p", query=("http://www.benchmark.org/family#F9M167",
                                                                             ("http://www.benchmark.org/family#hasSibling",
                                                                             "http://www.benchmark.org/family#married",
                                                                             "http://www.w3.org/1999/02/22-rdf-syntax-ns#type")),
                                                     tnorm="min", k=5)
top_entities = [topk_entity for topk_entity, query_score in predictions]
print(top_entities)
assert "http://www.benchmark.org/family#Person" in top_entities
assert "http://www.benchmark.org/family#Father" in top_entities
assert "http://www.benchmark.org/family#Male" in top_entities

For more, please refer to examples/multi_hop_query_answering.

Predicting Missing Links

To see a code snippet

from dicee import KGE
# (1) Train a knowledge graph embedding model..
# (2) Load a pretrained model
pre_trained_kge = KGE(path='..')
# (3) Predict missing links through head entity rankings
pre_trained_kge.predict_topk(h=[".."],r=[".."],topk=10)
# (4) Predict missing links through relation rankings
pre_trained_kge.predict_topk(h=[".."],t=[".."],topk=10)
# (5) Predict missing links through tail entity rankings
pre_trained_kge.predict_topk(r=[".."],t=[".."],topk=10)

Downloading Pretrained Models

We provide plenty pretrained knowledge graph embedding models at dice-research.org/projects/DiceEmbeddings/.

To see a code snippet

from dicee import KGE
mure = KGE(url="https://files.dice-research.org/projects/DiceEmbeddings/YAGO3-10-Pykeen_MuRE-dim128-epoch256-KvsAll")
quate = KGE(url="https://files.dice-research.org/projects/DiceEmbeddings/YAGO3-10-Pykeen_QuatE-dim128-epoch256-KvsAll")
keci = KGE(url="https://files.dice-research.org/projects/DiceEmbeddings/YAGO3-10-Keci-dim128-epoch256-KvsAll")
quate.predict_topk(h=["Mongolia"],r=["isLocatedIn"],topk=3)
# [('Asia', 0.9894362688064575), ('Europe', 0.01575559377670288), ('Tadanari_Lee', 0.012544365599751472)]
keci.predict_topk(h=["Mongolia"],r=["isLocatedIn"],topk=3)
# [('Asia', 0.6522021293640137), ('Chinggis_Khaan_International_Airport', 0.36563414335250854), ('Democratic_Party_(Mongolia)', 0.19600993394851685)]
mure.predict_topk(h=["Mongolia"],r=["isLocatedIn"],topk=3)
# [('Asia', 0.9996906518936157), ('Ulan_Bator', 0.0009907372295856476), ('Philippines', 0.0003116439620498568)]

How to Deploy

To see a single line of code

from dicee import KGE
KGE(path='...').deploy(share=True,top_k=10)

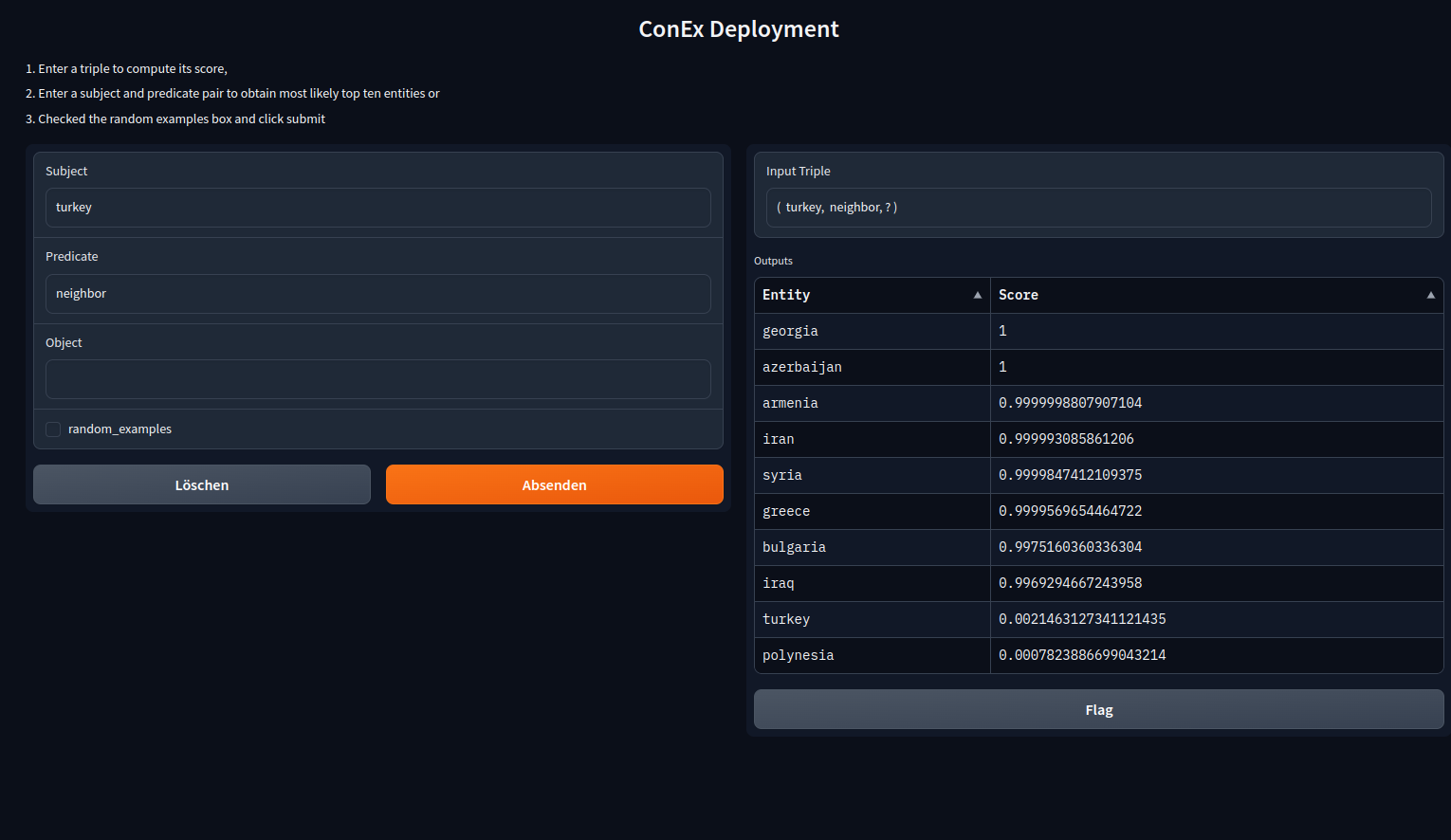

To see the interface of the webservice

Docker

Details

To build the Docker image: ``` docker build -t dice-embeddings . ```

To test the Docker image:

docker run --rm -v ~/.local/share/dicee/KGs:/dicee/KGs dice-embeddings ./main.py --model AConEx --embedding_dim 16

How to cite

Currently, we are working on our manuscript describing our framework. If you really like our work and want to cite it now, feel free to chose one :)

# Keci
@inproceedings{demir2023clifford,
  title={Clifford Embeddings--A Generalized Approach for Embedding in Normed Algebras},
  author={Demir, Caglar and Ngonga Ngomo, Axel-Cyrille},
  booktitle={Joint European Conference on Machine Learning and Knowledge Discovery in Databases},
  pages={567--582},
  year={2023},
  organization={Springer}
}
# LitCQD
@inproceedings{demir2023litcqd,
  title={LitCQD: Multi-Hop Reasoning in Incomplete Knowledge Graphs with Numeric Literals},
  author={Demir, Caglar and Wiebesiek, Michel and Lu, Renzhong and Ngonga Ngomo, Axel-Cyrille and Heindorf, Stefan},
  booktitle={Joint European Conference on Machine Learning and Knowledge Discovery in Databases},
  pages={617--633},
  year={2023},
  organization={Springer}
}
# DICE Embedding Framework
@article{demir2022hardware,
  title={Hardware-agnostic computation for large-scale knowledge graph embeddings},
  author={Demir, Caglar and Ngomo, Axel-Cyrille Ngonga},
  journal={Software Impacts},
  year={2022},
  publisher={Elsevier}
}
# KronE
@inproceedings{demir2022kronecker,
  title={Kronecker decomposition for knowledge graph embeddings},
  author={Demir, Caglar and Lienen, Julian and Ngonga Ngomo, Axel-Cyrille},
  booktitle={Proceedings of the 33rd ACM Conference on Hypertext and Social Media},
  pages={1--10},
  year={2022}
}
# QMult, OMult, ConvQ, ConvO
@InProceedings{pmlr-v157-demir21a,
  title = 	 {Convolutional Hypercomplex Embeddings for Link Prediction},
  author =       {Demir, Caglar and Moussallem, Diego and Heindorf, Stefan and Ngonga Ngomo, Axel-Cyrille},
  booktitle = 	 {Proceedings of The 13th Asian Conference on Machine Learning},
  pages = 	 {656--671},
  year = 	 {2021},
  editor = 	 {Balasubramanian, Vineeth N. and Tsang, Ivor},
  volume = 	 {157},
  series = 	 {Proceedings of Machine Learning Research},
  month = 	 {17--19 Nov},
  publisher =    {PMLR},
  pdf = 	 {https://proceedings.mlr.press/v157/demir21a/demir21a.pdf},
  url = 	 {https://proceedings.mlr.press/v157/demir21a.html},
}
# ConEx
@inproceedings{demir2021convolutional,
title={Convolutional Complex Knowledge Graph Embeddings},
author={Caglar Demir and Axel-Cyrille Ngonga Ngomo},
booktitle={Eighteenth Extended Semantic Web Conference - Research Track},
year={2021},
url={https://openreview.net/forum?id=6T45-4TFqaX}}
# Shallom
@inproceedings{demir2021shallow,
  title={A shallow neural model for relation prediction},
  author={Demir, Caglar and Moussallem, Diego and Ngomo, Axel-Cyrille Ngonga},
  booktitle={2021 IEEE 15th International Conference on Semantic Computing (ICSC)},
  pages={179--182},
  year={2021},
  organization={IEEE}

For any questions or wishes, please contact: [e-mail]
