Cmple
A code preprocessor/generator for C++ cross-platform projects.
This utility transforms simplified C++ source code files into fully-functional code units ready for compilation including linking graphical API (such as OpenGL) and related submodules.
Why this name
Comes from "C" and "Simple"
Table of Contents
- Cmple: Overview
- Table of Contents
- Current status
- Project Requirements
- Repository structure
- Features
- Design & Architecture
- Getting Started
- Examples
- Contributing
- License
Current project status
File parser is provided. Missing functions are automatically filled. Interface and implementation code are split into appropriate file types. Header inclusion system enabled. Memory subsystem is injected.
Graphical features are supported for windows creation, basic rendering, input processing.
Project requirements
Glossary
Term | Description |
---|---|
File converter | A program that converts code written in simplified language to C++ code. |
Wrapper | A tool that converts signature of function written in simplified language to syntactically correct C++ function. |
Dependency | A relationship of types or objects, between different files |
Toolchain | A set of programs used one after another to produce a final program out of code files. |
Visibility | A space in code, where a variable or type can be accessed. |
Resolver | A function that gives access to objects through a specific identifier. |
Stakeholders
Name | Duty | Roles | Responsibilities |
---|---|---|---|
Igor Parfenov | Main developer | Programmer, debugger, testing | Write code, debug code, test code |
Anton Dospekhov | Product Manager | Programmer, QA engineer | Write code, check other platforms compatibility, delivery management, user experience design, documentation, git repository management |
User stories
Title | Story |
---|---|
C++ file converter | As a developer, I want to be able to write simple script code, so the program converts my simple source files into complete C++ files |
Check syntax correctness | As a developer, I want to be able to be sure that input code has correct syntax, so the compiler would get valid files to compile. |
Function wrapper | As a developer, I want my functions to have consistent signatures, so the wrapper should check declaration and naming rules. |
Class wrapper | As a developer, I want my classes to have consistent structure, so the wrapper should check the interface of the declared class. |
Dependency manager | As a developer, I want all libraries and modules to be imported automatically, so the program would create and manage required header files. |
Toolchain manager | As a developer, I want to automate compilation of code, after successful processing, so the tool would call the compiler tool chain with required arguments. |
Visibility resolver | As a developer, I want the system to automatically manage access to the code interface, so the system would put appropriate access specifiers automatically. |
Memory management system | As a developer, I don’t want to manually manage memory and resources, so the system would inject simplified automatic memory allocation and release utility. |
Non-functional requirement
Category | Requirement | Actions to achieve |
---|---|---|
Performance Efficiency | Resource Utilization | Create the system to manage memory and keep track of the memory allocations and deallocations for objects of classes. |
Usability | Learnability | Create a manual and example file. |
Usability | User error protection | Write a delegator that would pass input to the syntax checking tool to ensure primary correctness. |
Compatibility | Interoperability | The utility will be a console application, so it would be platform independent. |
Maintainability | Testability | We will include an option to enable debugging symbols. |
Features
- C++ file converter: program converts simple source files into complete C++ files
- Syntax correctness check.
- Function wrapper: The wrapper checks declaration and naming rules.
- Class wrapper: The wrapper checks the interface of the declared class.
- Dependency manager: All libraries and modules to be imported automatically, so the program creates and manages required header files.
- Toolchain manager: tool calls the compiler toolchain with required arguments.
- Visibility resolver: The system automatically manages access to the code interface.
- Memory management system: The system injects simplified automatic memory allocation and release utility.
Repository structure
Cmple project is implemented in C++. The directory structure follows universal CMake pattern:
/Build Binary & Intermediate files (by CMake)
/Core Cmple source code
/Include Header public files
/Source Source code private files
/ThirdParty Third-party libraries
/Tests Test subproject
/Examples Example project inputs & outputs
Design and Architecture
For better experience understanding project architecture we recommend you to look at Beta-Phase presentation slides. They are available as .pptx or .pdf. Most of the project architechture is descibed there.
This is one of the schemes describing the code structure.
As a peculiar example we can consider a Manager interface. It represents a Strategy design pattern and used for multiple parser features:
- Each manager implements a
Transform()
method where it performs its part on processing project files. - Main converter class uses composition of implementations of Manager class. During conversion it "Transforms" each state of project to the new one.
- Definition Manager is responsible for matching functions declarations & definitions.
- SCManager (short for Separate Compilation Manager) is responsible for splitting the code base into headers and source files.
- Memory Manager add memory access injections into the code where it needed.
- Other managers can be easily added, if needed.
Getting Started
Quick Start: Windows
Prerequisites:
- Windows 10 or newer
- Git version 2.22 or newer
- CMake version 3.15 or newer
- C++ build environment as one of:
- Visual Studio 2019 with all following options:
- Desktop Development for C++
- C++ CMake tools for Windows
- Test Adapter for Google Test (for tests)
- C++ Clang tools for Windows (optional)
- LLVM suite for ClangCL builds (optional)
- MinGW64
- LLVM suite for Clang builds (optional)
- Visual Studio 2019 with all following options:
First, download the repository with the following command:
> git clone --recursive https://github.com/TonyDecvA180XN/Cmple <where_to_clone>
It will grab all included libraries with it. However, if you already cloned it without recursive mode, you can download required modules by running Install.bat
script.
Every time you need to change compiler suite or your project structure is messed up, use Clean-Project.bat
Build process relies on CMake, so make sure all your desired compile environment are visible to it. You can check available generators by running cmake --help
and examining the trailing section.
To build the project you need run appropriate batch script, as for Windows, one of the:
Build-Windows-Clang.bat
for Clang compiler with MinGW build systemBuild-Windows-ClangCL.bat
for Clang compiler with Microsoft Build systemBuild-Windows-GCC.bat
for MinGW compilerBuild-Windows-MSVC.bat
for Microsoft Visual C++ compiler
First build takes a lot time since it has to build all the libraries included in project.
By default, tests are built with the project, to disable it change in CMakeLists.txt
in the root folder the following line:
set(ENABLE_TESTS ON CACHE BOOL "Build tests" FORCE)
to
set(ENABLE_TESTS OFF CACHE BOOL "Build tests" FORCE)
All executable are stored inside Build/
folder. Main executable is in Build/Core/
(or in Build/Core/Debug/
if you used "MSVC" compiler).
Test executable is in Build/Tests/
(or in Build/Tests/Debug/
if you used "MSVC" compiler).
Visual Studio automatically grabs test
Quick Start: Unix
Prerequisites:
- Git version 2.22 or newer
- CMake version 3.15 or newer
- GCC version 8 or newer
- LLVM for Clang builds (optional)
First, download the repository with the following command:
> git clone --recursive https://github.com/TonyDecvA180XN/Cmple <where_to_clone>
It will grab all included libraries with it. However, if you already cloned it without recursive mode, you can download required modules by running bash Install.sh
script.
Every time you need to change compiler suite or your project structure is messed up, use bash Clean-Project.sh
Build process relies on CMake, so make sure all your desired compile environment are visible to it. You can check available generators by running cmake --help
and examining the trailing section.
To build the project you need run appropriate batch script, as for Unix, one of the:
bash Build-Linux-Clang.sh
for Clang compiler with GCC build systembash Build-Linux-GCC.sh
for GCC compiler
First build takes a lot time since it has to build all the libraries included in project.
By default, tests are built with the project, to disable it change in CMakeLists.txt
in the root folder the following line:
set(ENABLE_TESTS ON CACHE BOOL "Build tests" FORCE)
to
set(ENABLE_TESTS OFF CACHE BOOL "Build tests" FORCE)
All executable are stored inside Build/
folder. Main executable is in Build/Core/
.
Test executable is in Build/Tests/
.
Execution flags
The Cmple program supports the following set of execution arguments:
-
input=\<directory\>
. This flag specifies the user input directory. By default it is input. -
const_input=\<directory\>
. This flag specifies the internal input directory. By default it isconst_input
. -
to_compile=\<directory\>
. This flag specifies the output directory. By default it isto_compile
. -
gcc_create_batch
. With this flag the parser will create batch file for compilation program usingGNU GCC
compiler. -
gcc_auto_execute
. With this flag the parser will createbatch
file for compilation program usingGNU GCC
compiler and execute it.
Information for developers
The manual for developers can be found here.
The API reference can be found here.
Code quality

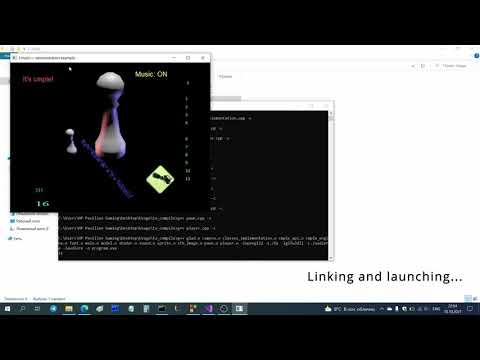

Video demo
Code analysis
During development the latest/safest modern C++ techniques were used. To ensure For C++ code analysis in this project several linters (static code analysis tools):
- JetBrains Resharper++ Code Inspection
- PVS-Studio
- Microsoft Visual C++ Code Analysis Tool (with Recommended Native C++ Ruleset)
- Clang-Tidy as part of LLVM
Testing
Testing is performed using GTest library. We test by feeding test input to the tool and comparing it with the expected output.
Contributing
Cmple is an open source project, and is thus can be built with your contributions.
Here are main contributors of the project:
License
The code in this repository is licensed under the MIT License.
