ECI-Sampling: Gradient-Free Generation for Hard-Constrained Systems

By Chaoran Cheng, Feb 28, 2025

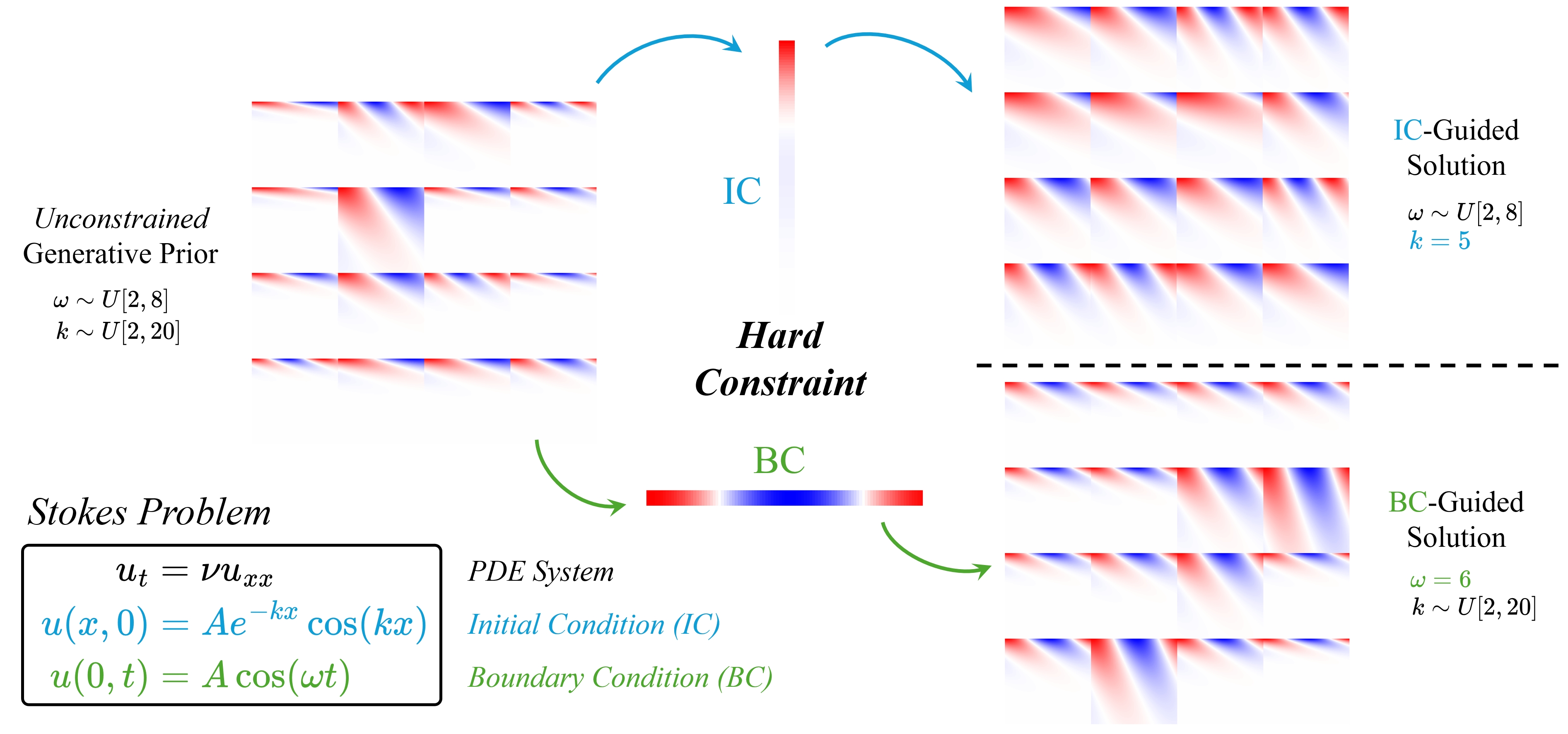

This is the official code repo for the ICLR 2025 paper Gradient-Free Generation for Hard-Constrained Systems by Chaoran Cheng, Boran Han, Danielle C. Maddix, Abdul Fatir Ansari, Andrew Stuart, Michael W. Mahoney, and Bernie Wang. We present ECI-sampling (stands for extrapolation-correction-interpolation) as a novel framework for adapting pre-trained, unconstrained generative models to exactly satisfy constraints in a zero-shot manner, without requiring expensive gradient computations or fine-tuning. The paper is available on arXiv.

Setup

Run the following command to set up the environment:

conda env create -f env.yml

Most of our datasets are synthetic, meaning we generate the exact solutions on the fly. For the 2D Navier-Stokes (NS) equation, the data are simulated, meaning they were generated using numerical solvers. You can run the following command to generate the solutions for the NS equation:

cd datasets/generate
python generate_ns_2d.py --root ../data/ns/ --nw 100 --nf 100 --s 64 --steps 50 --mu 1e-3

The above script will generate the NS solution data to the directory of ../data/ns/ with 100 initial vorticities, 100 forcing terms, a spatial resolution of 64 × 64, 50 time snapshots, and a viscosity of 1e-3. See the argparser doc in generate_ns_2d.py for more details.

Usage

Model Pre-Training

To train a functional flow matching (FFM) model as the generative prior, run:

python main.py configs/stokes.yml --savename stokes

The above command trains an FFM on the Stokes problem dataset. Most arguments in main.py and the config files under the configs directory are self-explanatory. Feel free to modify them to suit your needs. Or, you can use pytorch-lightning with multi-GPU support on the larger Navier-Stokes dataset with the following command:

python main_lightning.py configs/ns_lightning.yml --savename ns_lightning

The model architecture is largely inspired by the FFM repo.

To train a conditional FFM model, run:

python train_cond.py configs/stokes_cond.yml --savename stokes_ic

The current stokes_cond.yml is configured for the Stokes problem with initial condition (IC) constraints. Modify the cond_type field to bc for boundary condition (BC) constraints, icbc for both IC and BC, and first15 for the first 15 frames in the NS equation in ns_cond.yml.

To train a regression FNO model, run:

python train_fno.py configs/stokes_fno.yml --savename stokes_fno

Constraint Enforcement

We implement the hard constraints in models/constraints.py, which has the following class hierarchy:

- Constraint (abstract)
    - ChainCondition
    - NoneCondition
    - DirichletCondition
    - DirichletXtCondition
        - DirichletX0Condition
            - InitialCondition
            - BoundaryCondition
        - DirichletXnCondition
    - PeriodicCondition
    - ConservationLaw

You can add your own constraint class by inheriting the proper class and implementing the adjust method.

Sampling

Built upon the pre-trained FFM model, we implement the following sampling methods:

• sample: The standard FFM sampling process using an adaptive ODE solver. For conditional FFM, this method serves as the conditional sampling approach.
• eci_sample: Our proposed ECI sampling scheme by interleaving extrapolation, correction, and interpolation steps.
• guided_sample: Gradient-guided sampling from DiffusionPDE.
• dflow_sample: D-Flow sampling by differentiating through the ODE solver.

Please refer to models/functional.py for more detailed documentation. We also provide examples of ECI sampling with the pre-trained FFM model in eci_sample.ipynbunder the notebook directory. Furthermore, we provide fpd.ipynb for the calculation of Fréchet Poseidon Distance (FPD) between two sets of solutions using the pre-trained PDE foundation model, Poseidon-B. Install either JupyterLab or Jupyter Notebook if you want to run these notebooks.

Security

See CONTRIBUTING for more information.

License

This project is licensed under the Apache-2.0 License.

Citation

If you find our work helpful, please consider citing our paper with

@inproceedings{
  cheng2025gradientfree,
  title={Gradient-Free Generation for Hard-Constrained Systems},
  author={Chaoran Cheng and Boran Han and Danielle C. Maddix and Abdul Fatir Ansari and Andrew Stuart and Michael W. Mahoney and Bernie Wang},
  booktitle={The Thirteenth International Conference on Learning Representations},
  year={2025},
  url={https://openreview.net/forum?id=teE4pl9ftK}
}
