- Deep Learning
- Streamlit
- Canvas
👪 팀명: 숫자놀이
| 팀원 | 역할(Code Link) |
|---|---|
| 강동엽 | Calculator |
| 이상훈 | Phone Number |
| 지우근 | Main Page |
| 최세현 | Lottery |
- Teachable Machine Link - 마스크, 로고, 가위바위보를 실험해 봤지만 정확도가 높지 않아서 기각
- MNIST-Canvas 버전 문제 (Terminal Settings로 해결), 배포 문제 (packages.txt file로 해결)
- 코딩하면서의 시행착오
- columns 안에 columns 코딩 불가능!
- 버튼을 누를 때마다 계속 페이지가 초기화됨 😢 (session.state로 해결)
- 배포한 사이트에서 사이드바에 다른 페이지가 표시되지 않음 (streamlit을 최신버전으로, photobuf의 버전을 그에 맞게 바꿔서 해결)
- Keyerror DISPLAY (pyautogui 모듈을 없애줌으로써 해결)
- encode('ANSI') (('utf-8-sig')로 바꿔줌으로써 해결)
- emoji rain
- stoggle
- 효과음
- linebar
- Mention
- streamlit.extras 모듈에서 실행되지 않았던 기능들
# 아래 단계를 차례로 실행해 주세요
# 1. python -m pip install --upgrade pip
# 2. conda create -n tensorflow python=3.7
# 3. activate tensorflow
# 4. pip install tensorflow
# 5. pip install keras
# 6. pip install opencv-python
# 7. pip install streamlit_drawable_canvas
# 8. 모듈이 없다고 오류뜨면 pip install <module name>
# 9. pip install -r requirements.txt

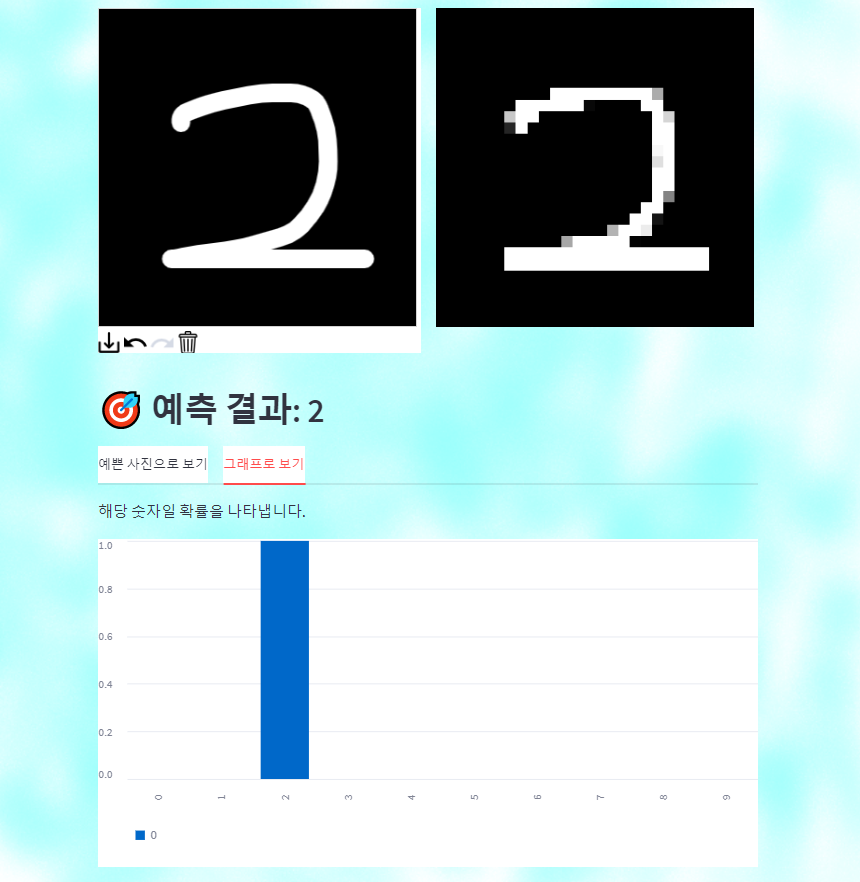

Main Page
Calculator
Lottery

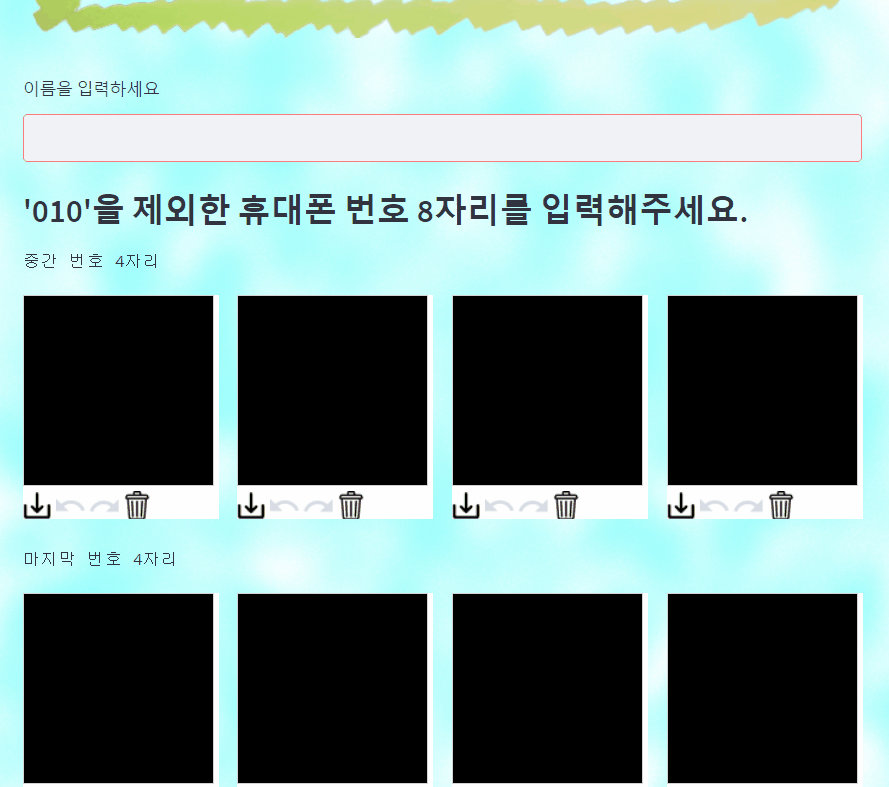

Phone Number
import cv2
from keras.models import load_model
import streamlit as st
from streamlit_drawable_canvas import st_canvas
import numpy as np
from streamlit_vertical_slider import vertical_slider
from utils import set_bg
set_bg('images/mnist2.png')
st.sidebar.image('./images/sidebar_main.jpg')
st.image('./images/title.png')
st.write('### :star: :red[특별 체험]')
calculator = st.checkbox('Calculator')
if calculator:
st.write('좋아요!')
lottery = st.checkbox('Lottery')
if lottery:
st.image('./images/따봉1.png')
phone_number = st.checkbox('Phone Number')
if phone_number:
st.image('./images/따봉2.png')
st.write('### :mag: :blue[기본 체험]')
@st.cache(allow_output_mutation=True) # 모델을 한 번만 load하기 위해서 Rerun을 안하도록 만들어줌
def load():
return load_model('./model.h5')
model = load()
CANVAS_SIZE = 340
col1, col2 = st.columns(2)
with col1:
canvas = st_canvas(
fill_color='#000000',
stroke_width=20,
stroke_color='#FFFFFF',
background_color='#000000',
width=CANVAS_SIZE,
height=CANVAS_SIZE,
drawing_mode='freedraw',
key='canvas'
)
if canvas.image_data is not None:
img = canvas.image_data.astype(np.uint8)
img = cv2.resize(img, dsize=(28, 28))
preview_img = cv2.resize(img, dsize=(CANVAS_SIZE, CANVAS_SIZE), interpolation=cv2.INTER_NEAREST)
col2.image(preview_img)
x = cv2.cvtColor(img, cv2.COLOR_BGR2GRAY)
x = x.reshape((-1, 28, 28, 1))
y = model.predict(x).squeeze()
st.write('## :dart: 예측 결과: %d' % np.argmax(y))
st.write('### :green[예쁜 사진으로 보기]')
[col3, col4, col5] = st.columns([2, 2, 1])
with col3:
if st.button('일치'):
if np.argmax(y) == 0:
st.image('./images/zero.jpg')
with open("./images/zero.jpg", "rb") as file:
btn = st.download_button(
label="이미지 소장하기",
data=file,
file_name="zero.jpg",
mime="image/jpg"
)
elif np.argmax(y) == 1:
st.image('./images/one.jpg')
with open("./images/one.jpg", "rb") as file:
btn = st.download_button(
label="이미지 소장하기",
data=file,
file_name="one.jpg",
mime="image/jpg"
)
elif np.argmax(y) == 2:
st.image('./images/two.jpg')
with open("./images/two.jpg", "rb") as file:
btn = st.download_button(
label="이미지 소장하기",
data=file,
file_name="two.jpg",
mime="image/jpg"
)
elif np.argmax(y) == 3:
st.image('./images/three.jpg')
with open("./images/three.jpg", "rb") as file:
btn = st.download_button(
label="이미지 소장하기",
data=file,
file_name="three.jpg",
mime="image/jpg"
)
elif np.argmax(y) == 4:
st.image('./images/four.jpg')
with open("./images/four.jpg", "rb") as file:
btn = st.download_button(
label="이미지 소장하기",
data=file,
file_name="four.jpg",
mime="image/jpg"
)
elif np.argmax(y) == 5:
st.image('./images/five.jpg')
with open("./images/five.jpg", "rb") as file:
btn = st.download_button(
label="이미지 소장하기",
data=file,
file_name="five.jpg",
mime="image/jpg"
)
elif np.argmax(y) == 6:
st.image('./images/six.jpg')
with open("./images/six.jpg", "rb") as file:
btn = st.download_button(
label="이미지 소장하기",
data=file,
file_name="six.jpg",
mime="image/jpg"
)
elif np.argmax(y) == 7:
st.image('./images/seven.jpg')
with open("./images/seven.jpg", "rb") as file:
btn = st.download_button(
label="이미지 소장하기",
data=file,
file_name="seven.jpg",
mime="image/jpg"
)
elif np.argmax(y) == 8:
st.image('./images/eight.jpg')
with open("./images/eight.jpg", "rb") as file:
btn = st.download_button(
label="이미지 소장하기",
data=file,
file_name="eight.jpg",
mime="image/jpg"
)
elif np.argmax(y) == 9:
st.image('./images/nine.jpg')
with open("./images/nine.jpg", "rb") as file:
btn = st.download_button(
label="이미지 소장하기",
data=file,
file_name="nine.jpg",
mime="image/jpg"
)
with col4:
if st.button('불일치'):
st.image('./images/불일치.png')
st.write('#### 다시 그려주세요')
with col5:
st.write("##### 내 만족도")
vertical_slider(
key="slider",
default_value=10,
step=1,
min_value=0,
max_value=100,
track_color="gray",
thumb_color="blue",
slider_color="red",
)
st.write("### :bluepurple[그래프로 보기]")
st.write("해당 숫자일 확률을 나타냅니다.")
st.bar_chart(y)
st.write('### BGM :musical_score:')
st.write('Fantasie Impromptu')
st.audio('./audios/Fantasie Impromptu.mp3')
st.write('He is a Perate')
st.audio('./audios/He is a Perate.mp3')
st.write('Merry Christmas Mr-Laurence')
st.audio('./audios/Merry Christmas Mr-Laurence.mp3')
st.write('River flows in your')
st.audio('./audios/River flows in your.mp3')
st.write('Summer')
st.audio('./audios/Summer.mp3')
import cv2
from keras.models import load_model
import streamlit as st
from streamlit_drawable_canvas import st_canvas
import numpy as np
import random
from utils import set_bg
set_bg('images/mnist2.png')
@st.cache(allow_output_mutation=True)
def load():
return load_model('./model.h5')
model = load()
st.image('./images/title.png')

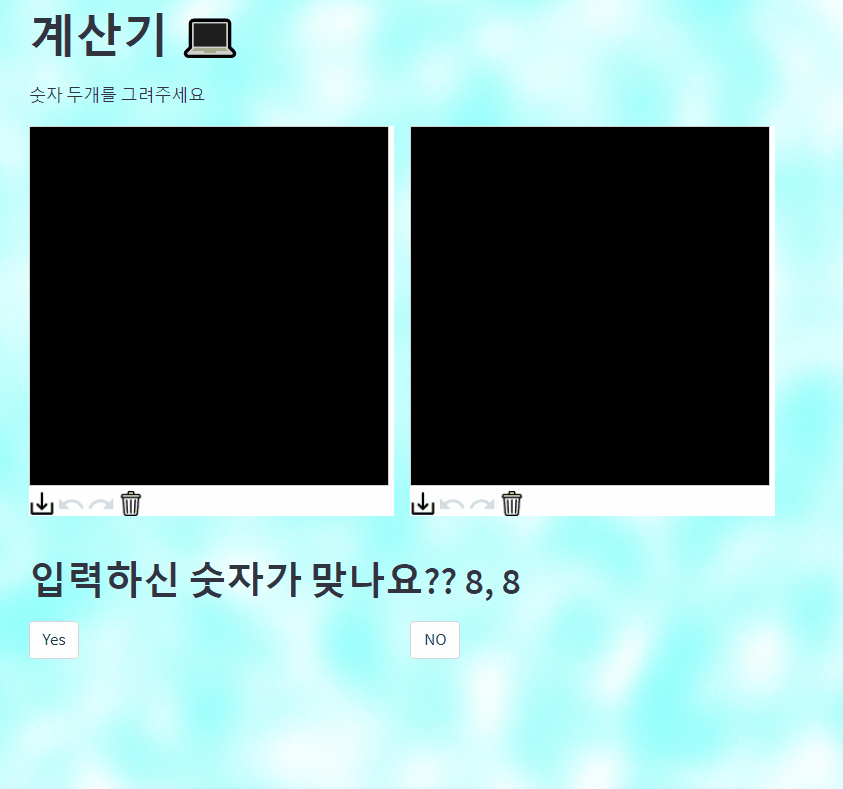

st.write('# 계산기 :computer:')
st.write('숫자 두개를 그려주세요')
CANVAS_SIZE = 340
STROKE_SIZE =16
# 숫자 확인
def model_predict(canvas1, canvas2) :
img1 = canvas1.image_data.astype(np.uint8)
img1 = cv2.resize(img1, dsize=(28, 28))
preview_img = cv2.resize(img1, dsize=(CANVAS_SIZE, CANVAS_SIZE), interpolation=cv2.INTER_NEAREST)
x1 = cv2.cvtColor(img1, cv2.COLOR_BGR2GRAY)
x1 = x1.reshape((-1, 28, 28, 1))
y1 = model.predict(x1).squeeze()
img2 = canvas2.image_data.astype(np.uint8)
img2 = cv2.resize(img2, dsize=(28, 28))
x2 = cv2.cvtColor(img2, cv2.COLOR_BGR2GRAY)
x2 = x2.reshape((-1, 28, 28, 1))
y2 = model.predict(x2).squeeze()
return np.argmax(y1), np.argmax(y2)
# 계산
def calculation() :
operator = st.radio('operator', ["+", "-", "%", "*"])
st.write("## 계산 결과는...")
if operator == "+" :
st.write('## %d + %d = %d' % (z1,z2,z1+z2))
elif operator == "-" :
st.write('## %d - %d = %d' % (z1,z2,z1-z2))
elif operator == "%" :
st.write('## %d / %d = %d' % (z1,z2,z1/ z2))
else :
st.write('## %d * %d = %d' % (z1,z2,z1*z2))
# canvas 설정
col1, col2 = st.columns(2)
with col1:
canvas1 = st_canvas(
fill_color='#000000',
stroke_width=STROKE_SIZE,
stroke_color='#FFFFFF',
background_color='#000000',
width=CANVAS_SIZE,
height=CANVAS_SIZE,
drawing_mode='freedraw',
key='canvas1'
)
with col2:
canvas2 = st_canvas(
fill_color='#000000',
stroke_width=STROKE_SIZE,
stroke_color='#FFFFFF',
background_color='#000000',
width=CANVAS_SIZE,
height=CANVAS_SIZE,
drawing_mode='freedraw',
key='canvas2'
)
# 숫자 에측
if canvas1.image_data is not None and canvas2.image_data is not None:
z1, z2 = model_predict(canvas1, canvas2)
# 그린 숫자가 맞는지 확인
st.write("## 입력하신 숫자가 맞나요?? %d, %d" % (z1 ,z2) )
[col1, col2] =st.columns(2)
if 'button_clicked' not in st.session_state:
st.session_state.button_clicked = False
def callback():
st.session_state.button_clicked = True
# 맞을 경우
with col1 :
if (st.button("Yes", on_click=callback) or st.session_state.button_clicked):
st.write("## 연산자를 골라주세요!")
calculation()
with col2 :
if st.button("NO") :
st.write('#### 새로고침을 눌러주세요.')
import cv2
from keras.models import load_model
import streamlit as st
from streamlit_drawable_canvas import st_canvas
import numpy as np
import tensorflow as ts
import random
from utils import set_bg
set_bg('images/mnist2.png')
disable_btn=False
@st.cache(allow_output_mutation=True)
def load():
return load_model('./model.h5')
model = load()
st.image('./images/title.png')
st.title('행운의 숫자 뽑기')
col1, col2,col3,col4 = st.columns(4)
CANVAS_SIZE = 192
yes_btn=False
no_btn=False
with col1:
st.write("숫자를 그려주세요")
canvas1 = st_canvas(
fill_color='#000000',
stroke_width=20,
stroke_color='#FFFFFF',
background_color='#000000',
width=CANVAS_SIZE,
height=CANVAS_SIZE,
drawing_mode='freedraw',
key='canvas1'
)
with col2:
st.write("숫자를 그려주세요")
canvas2 = st_canvas(
fill_color='#000000',
stroke_width=20,
stroke_color='#FFFFFF',
background_color='#000000',
width=CANVAS_SIZE,
height=CANVAS_SIZE,
drawing_mode='freedraw',
key='canvas2'
)
# 브라우저가 가진 session을 이용하여 화면이 새로 렌더링 되더라도 계속 내 데이터를 가지고 갑니다.
if 'key' not in st.session_state:
st.session_state['key'] = set()
if 'sort' not in st.session_state:
st.session_state['sort'] = []
if 'rn' not in st.session_state:
st.session_state['rn'] = random.sample(range(1,100),4)
def lottery_check (check,win):
same=0
for i in check :
if i in win:
same+=1
return same
if len(st.session_state.key)>3 :
disable_btn=True
with col1:
st.write('뽑은 숫자들')
st.session_state.sort=list(st.session_state.key)
sorted_number=sorted(st.session_state.sort)
st.write(sorted_number)
with col2:
st.write('당첨번호 확인하기')
check_number=st.button('과연 몇개?')
st.write('나온 숫자입니다')
lottery_num=sorted(st.session_state.rn)
st.write(lottery_num)
txt=lottery_check(sorted_number,lottery_num)
st.write('%d 개 맞았습니다 ' %(txt))
def get_2number (c1,c2):
img = canvas1.image_data.astype(np.uint8)
img = cv2.resize(img, dsize=(28, 28))
x1 = cv2.cvtColor(img, cv2.COLOR_BGR2GRAY)
x1 = x1.reshape((-1, 28, 28, 1))
y1 = model.predict(x1).squeeze()
get_number1=np.argmax(y1)
img = canvas2.image_data.astype(np.uint8)
img = cv2.resize(img, dsize=(28, 28))
x2 = cv2.cvtColor(img, cv2.COLOR_BGR2GRAY)
x2 = x2.reshape((-1, 28, 28, 1))
y2 = model.predict(x2).squeeze()
get_number2=np.argmax(y2)
return int(get_number1)*10+int(get_number2)
if (canvas1.image_data is not None) & (canvas2.image_data is not None):
with col3:
get_number=get_2number(canvas1,canvas2)
st.subheader('쓰신 숫자가: %d 맞나요?' % get_number)
with st.container() :
yes_btn= st.button('yes',disabled=(disable_btn))
no_btn= st.button('no')
# 바뀐 부분
if yes_btn:
st.session_state.key.add(int(get_number))
if no_btn:
with col2:
st.write("숫자를 다시 입력해주세요")
st.text('중복숫자는 불가능')
# 바뀐부분
with col4:
st.text(" 총 4개의\n 숫자를 입력\n 하세요")
if st.session_state:
str_set=''
for i in st.session_state.key :
str_set+=str(i)+' '
st.subheader(str_set)
with col4:
refresh_btn=st.button("regame?")
if refresh_btn==True:
st.write('#### 새로고침을 눌러주세요.')
import cv2
from keras.models import load_model
import streamlit as st
from streamlit_drawable_canvas import st_canvas
import numpy as np
import pandas as pd
from io import BytesIO
from utils import set_bg
set_bg('images/mnist2.png')
@st.cache(allow_output_mutation=True)
def load():
return load_model('./model.h5')
model = load()
st.image('./images/title.png')
name_input = st.text_input('이름을 입력하세요')
st.subheader(" '010'을 제외한 휴대폰 번호 8자리를 입력해주세요.")
CANVAS_SIZE = 160
STROKE_SIZE = 12
st.text('중간 번호 4자리')
col1, col2, col3, col4 = st.columns(4)
with col1:
canvas1 = st_canvas(
fill_color='#000000',
stroke_width=STROKE_SIZE,
stroke_color='#FFFFFF',
background_color='#000000',
width=CANVAS_SIZE,
height=CANVAS_SIZE,
drawing_mode='freedraw',
key='canvas1'
)
with col2:
canvas2 = st_canvas(
fill_color='#000000',
stroke_width=STROKE_SIZE,
stroke_color='#FFFFFF',
background_color='#000000',
width=CANVAS_SIZE,
height=CANVAS_SIZE,
drawing_mode='freedraw',
key='canvas2'
)
with col3:
canvas3 = st_canvas(
fill_color='#000000',
stroke_width=STROKE_SIZE,
stroke_color='#FFFFFF',
background_color='#000000',
width=CANVAS_SIZE,
height=CANVAS_SIZE,
drawing_mode='freedraw',
key='canvas3'
)
with col4:
canvas4 = st_canvas(
fill_color='#000000',
stroke_width=STROKE_SIZE,
stroke_color='#FFFFFF',
background_color='#000000',
width=CANVAS_SIZE,
height=CANVAS_SIZE,
drawing_mode='freedraw',
key='canvas4'
)
st.text('마지막 번호 4자리')
col5, col6, col7, col8 = st.columns(4)
with col5:
canvas5 = st_canvas(
fill_color='#000000',
stroke_width=STROKE_SIZE,
stroke_color='#FFFFFF',
background_color='#000000',
width=CANVAS_SIZE,
height=CANVAS_SIZE,
drawing_mode='freedraw',
key='canvas5'
)
with col6:
canvas6 = st_canvas(
fill_color='#000000',
stroke_width=STROKE_SIZE,
stroke_color='#FFFFFF',
background_color='#000000',
width=CANVAS_SIZE,
height=CANVAS_SIZE,
drawing_mode='freedraw',
key='canvas6'
)
with col7:
canvas7 = st_canvas(
fill_color='#000000',
stroke_width=STROKE_SIZE,
stroke_color='#FFFFFF',
background_color='#000000',
width=CANVAS_SIZE,
height=CANVAS_SIZE,
drawing_mode='freedraw',
key='canvas7'
)
with col8:
canvas8 = st_canvas(
fill_color='#000000',
stroke_width=STROKE_SIZE,
stroke_color='#FFFFFF',
background_color='#000000',
width=CANVAS_SIZE,
height=CANVAS_SIZE,
drawing_mode='freedraw',
key='canvas8'
)
if canvas1.image_data is not None:
img1 = canvas1.image_data.astype(np.uint8)
img1 = cv2.resize(img1, dsize=(28, 28))
img2 = canvas2.image_data.astype(np.uint8)
img2 = cv2.resize(img2, dsize=(28, 28))
img3 = canvas3.image_data.astype(np.uint8)
img3 = cv2.resize(img3, dsize=(28, 28))
img4 = canvas4.image_data.astype(np.uint8)
img4 = cv2.resize(img4, dsize=(28, 28))
img5 = canvas5.image_data.astype(np.uint8)
img5 = cv2.resize(img5, dsize=(28, 28))
img6 = canvas6.image_data.astype(np.uint8)
img6 = cv2.resize(img6, dsize=(28, 28))
img7 = canvas7.image_data.astype(np.uint8)
img7 = cv2.resize(img7, dsize=(28, 28))
img8 = canvas8.image_data.astype(np.uint8)
img8 = cv2.resize(img8, dsize=(28, 28))
x1 = cv2.cvtColor(img1, cv2.COLOR_BGR2GRAY)
x1 = x1.reshape((-1, 28, 28, 1))
y1 = model.predict(x1).squeeze()
x2 = cv2.cvtColor(img2, cv2.COLOR_BGR2GRAY)
x2 = x2.reshape((-1, 28, 28, 1))
y2 = model.predict(x2).squeeze()
x3 = cv2.cvtColor(img3, cv2.COLOR_BGR2GRAY)
x3 = x3.reshape((-1, 28, 28, 1))
y3 = model.predict(x3).squeeze()
x4 = cv2.cvtColor(img4, cv2.COLOR_BGR2GRAY)
x4 = x4.reshape((-1, 28, 28, 1))
y4 = model.predict(x4).squeeze()
x5 = cv2.cvtColor(img5, cv2.COLOR_BGR2GRAY)
x5 = x5.reshape((-1, 28, 28, 1))
y5 = model.predict(x5).squeeze()
x6 = cv2.cvtColor(img6, cv2.COLOR_BGR2GRAY)
x6 = x6.reshape((-1, 28, 28, 1))
y6 = model.predict(x6).squeeze()
x7 = cv2.cvtColor(img7, cv2.COLOR_BGR2GRAY)
x7 = x7.reshape((-1, 28, 28, 1))
y7 = model.predict(x7).squeeze()
x8 = cv2.cvtColor(img8, cv2.COLOR_BGR2GRAY)
x8 = x8.reshape((-1, 28, 28, 1))
y8 = model.predict(x8).squeeze()
st.write('#### Number: 010-%d%d%d%d-%d%d%d%d' %(np.argmax(y1),np.argmax(y2),np.argmax(y3),np.argmax(y4),
np.argmax(y5),np.argmax(y6),np.argmax(y7),np.argmax(y8)),' 이 번호가 맞습니까?')
if 'number' not in st.session_state:
st.session_state.number = '010-'
if 'Phone_Number' not in st.session_state:
st.session_state.Phone_Number = []
if 'Name' not in st.session_state:
st.session_state.Name = []
def phone_number_covert():
num = str(np.argmax(y1))+str(np.argmax(y2))+str(np.argmax(y3))+str(np.argmax(y4))+'-'+str(np.argmax(y5))+str(np.argmax(y6))+str(np.argmax(y7))+str(np.argmax(y8))
st.session_state.number += num
return st.session_state.number
col_1, col_2 = st.columns(2)
with col_1:
if st.button('Yes'):
st.session_state.number = phone_number_covert()
st.session_state.Phone_Number += [st.session_state.number]
st.session_state.Name += [name_input]
df = pd.DataFrame(
{
"Name" : st.session_state.Name,
"Phone_Number": st.session_state.Phone_Number
}
)
st.session_state.number = '010-'
st.dataframe(df)
st.button('추가 입력')
csv = df.to_csv().encode('utf-8-sig')
st.download_button(
label="CSV 파일 다운로드",
data=csv,
file_name='휴대폰 번호 정보.csv'
)
excel_data = BytesIO()
df.to_excel(excel_data)
st.download_button(
label="엑셀 파일 다운로드",
data=excel_data,
file_name='휴대폰 번호 정보.xlsx'
)
with col_2:
if st.button('No'):
st.error('번호를 다시 입력하세요', icon="🚨")
