This Code Pattern will guide you through downloading, cleaning and visualizing data using different tools. In particular this Code Pattern showcases food insecurity in the US, along with its associated factors.
Often in data science we do a great deal of work to glean insights that have an impact on society or a subset of it and yet, often, we end up not communicating our findings or communicating them ineffectively to non data science audiences. That's where visualizations become the most powerful. By visualizing our insights and predictions, we, as data scientists and data lovers, can make a real impact and educate those around us that might not have had the same opportunity to work on a project of the same subject. By visualizing our findings and those insights that have the most power to do social good, we can bring awareness and maybe even change. This Code Pattern walks you through how to do just that, with IBM's Watson Studio, Pandas, Pixie Dust and Watson Analytics.
For this particular Code Pattern, food insecurity throughout the US is focused on. Low access, diet-related diseases, race, poverty, geography and other factors are considered by using open government data. For some context, this problem is a more and more relevant problem for the United States as obesity and diabetes rise and two out of three adult Americans are considered obese, one third of American minors are considered obese, nearly ten percent of Americans have diabetes and nearly fifty percent of the African American population have heart disease. Even more, cardiovascular disease is the leading global cause of death, accounting for 17.3 million deaths per year, and rising. Native American populations more often than not do not have grocery stores on their reservation... and all of these trends are on the rise. The problem lies not only in low access to fresh produce, but food culture, low education on healthy eating as well as racial and income inequality.
The government data that I use in this Code Pattern has been conveniently combined into a dataset for our use, which you can find in this repo under combined_data.csv.zip. You can find the original, government data from the US Bureau of Labor Statistics https://www.bls.gov/cex/ and The United States Department of Agriculture https://www.ers.usda.gov/data-products/food-environment-atlas/data-access-and-documentation-downloads/. For the data we use in the second part of this Code Pattern with Watson Analytics, you can go to df_focusedvalues.csv in this repo. You will need a Watson Studio account and a Watson Analytics account to run the duration of this Code Pattern, but you can follow along with the steps below!
- Open Watson Studio and create a notebook.
- Download the data in Watson Studio and explore it.
- Load Pixie Dust and use for visualizations.
- Download dataframe as a csv from Watson Studio.
- Upload the csv to Watson Analytics and visualize.
- IBM Watson Studio: Analyze data using RStudio, Jupyter, and Python in a configured, collaborative environment that includes IBM value-adds, such as managed Spark.
- IBM Watson Analytics: Provides smart data discovery, automated predictive analytics and cognitive capabilities that enables users to interact with data conversationally.
- Jupyter Notebook: An open source web application that allows you to create and share documents that contain live code, equations, visualizations, and explanatory text.
- PixieDust: Provides a Python helper library for IPython Notebook.
- Cloud: Accessing computer and information technology resources through the Internet.
- Data Science: Systems and scientific methods to analyze structured and unstructured data in order to extract knowledge and insights.
- Python: Python is a programming language that lets you work more quickly and integrate your systems more effectively.
- pandas: A Python library providing high-performance, easy-to-use data structures.
This Code Pattern consists of two activities:
- Sign up for the Watson Studio
- Create a new Watson Studio project
- Associate a Spark service
- Create the notebook
- Upload data
- Run the notebook
- Save and Share
Log in or sign up for IBM's Watson Studio.
Note: if you would prefer to skip the remaining Watson Studio set-up steps and just follow along by viewing the completed Notebook, simply:
- View the completed notebook and its outputs, as is.
- While viewing the notebook, you can optionally download it to store for future use.
- Load the example with output from this repository into Watson Studio for analysis
example_output/Diet-Related-Disease-Exploratory.ipynb- When complete, continue this code pattern by jumping ahead to the Analyze the data in Watson Analytics section.
- Select the
New Projectoption from the Watson Studio landing page and choose theData Scienceoption.
- To create a project in Watson Studio, give the project a name and either create a new
Cloud Object Storageservice or select an existing one from your IBM Cloud account.
- Upon a successful project creation, you are taken to a dashboard view of your project. Take note of the
AssetsandSettingstabs, we'll be using them to associate our project with any external assets (datasets and notebooks) and any IBM cloud services.
- From the project dashboard view, click the
Settingstab, click the+ Add servicebutton and choose theSparkoption from the list.
- Create your Spark service by selecting an existing Spark service or creating a new one.
It should now appear in your Services list.
- From the project dashboard view, click the
Assetstab, click the+ New notebookbutton.
- Give your notebook a name and select your desired runtime, in this case we'll be using the associated Spark runtime.
- Now select the
From URLtab to specify the URL to the notebook in this repository.
- Enter this URL:
https://github.com/IBM/visualize-food-insecurity/blob/master/notebooks/Diet-Related%20Disease%20Exploratory.ipynb
- Click the
Createbutton.
- Return to the project dashboard view and select the
Assetstab. - Extract the zip file in this repo:
data/combined_data.csv.zip - This project has 1 dataset. Upload it as data asset in your project. Do this by loading each dataset into the pop up section on the right hand side. Please see a screenshot of what it should look like below.
- Once complete, go into your notebook in the edit mode (click on the pencil icon next to your notebook on the dashboard).
- Click on the cell with the comment
#Insert Pandas Data Frame - Click on the "1001" data icon in the top right. The data files should show up.
- Click on each and select "Insert Pandas Data Frame". Once you do that, a whole bunch of code will show up in the highlighted cell.
- Make sure your
combined_data.csvis saved asdf_data_1, so that it is consistent with my notebook and so you do not have to change the code.
When a notebook is executed, what is actually happening is that each code cell in the notebook is executed, in order, from top to bottom.
Each code cell is selectable and is preceded by a tag in the left margin. The tag
format is In [x]:. Depending on the state of the notebook, the x can be:
- A blank, this indicates that the cell has never been executed.
- A number, this number represents the relative order this code step was executed.
- A
*, this indicates that the cell is currently executing.
There are several ways to execute the code cells in your notebook:
- One cell at a time.
- Select the cell, and then press the
Playbutton in the toolbar.
- Select the cell, and then press the
- Batch mode, in sequential order.
- From the
Cellmenu bar, there are several options available. For example, you canRun Allcells in your notebook, or you canRun All Below, that will start executing from the first cell under the currently selected cell, and then continue executing all cells that follow.
- From the
- At a scheduled time.
- Press the
Schedulebutton located in the top right section of your notebook panel. Here you can schedule your notebook to be executed once at some future time, or repeatedly at your specified interval.
- Press the
Under the File menu, there are several ways to save your notebook:
Savewill simply save the current state of your notebook, without any version information.Save Versionwill save your current state of your notebook with a version tag that contains a date and time stamp. Up to 10 versions of your notebook can be saved, each one retrievable by selecting theRevert To Versionmenu item.
You can share your notebook by selecting the “Share” button located in the top right section of your notebook panel. The end result of this action will be a URL link that will display a “read-only” version of your notebook. You have several options to specify exactly what you want shared from your notebook:
Only text and output: will remove all code cells from the notebook view.All content excluding sensitive code cells: will remove any code cells that contain a sensitive tag. For example,# @hidden_cellis used to protect your dashDB credentials from being shared.All content, including code: displays the notebook as is.- A variety of
download asoptions are also available in the menu.
- Download our new dataframe from Watson Studio
- Upload our new dataframe csv into Watson Analytics
- Check out the discoveries that Watson Analytics offers
- Suggest different relationships to visualize in the display section of Watson Analytics
The last section of the notebook involves steps to download a dataframe from Watson Studio so that it can be used in Watson Analytics. For convenience, that data frame file (df_focusdvalues.csv) is also available in this repo and can be found here. Download either version of the csv file for use in the following steps. The description of the data values can be found here.

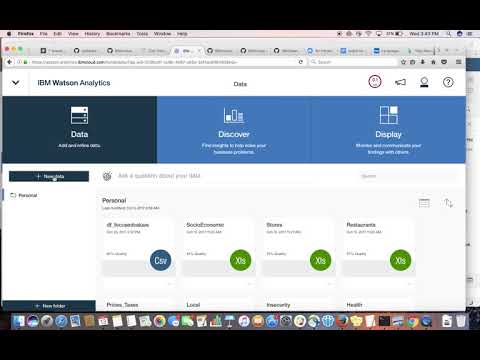

Once you create an account and login to IBM Watson Analytics you can upload the csv you just downloaded and use it in your next steps. Do this in the "data" section and push "New data". This should only take a few moments to load.
Note: If you are using a free trial version of Watson Analytics, the data download may fail due to storage limits. In this case, delete any pre-loaded sample data sets to make room for the
df_focusdvalues.csvdata file.
Once you've set up your account, you can see that the Watson plaform has three sections: data, discover and display. You uploaded your data to the "data" section, but now you'll want to go to the "discover" section. Under "discover" you can select your dataframe dataset for use. Once you've selected it, the Watson platform will suggest different insights to visualize. You can move forward with its selections or create your own, or both. You can take a look at mine here (you'll need an account to view): https://ibm.co/2xAlAkq or see the screen shots attached to this repo. You can also go into the "display" section and create a shareable layout like mine (again you'll need an account): https://ibm.co/2A38Kg6.
You can see that with these visualizations the user can see the impact of food insecurity by state, geographically distributed and used aid such as reduced school lunches, a map of diabetes by state, a predictive model for food insecurity and diabetes (showcasing the factors that, in combination, suggest a likelihood of food insecurity), drivers of adult diabetes, drivers of food insecurity, the relationship with the frequency of farmers market locations, food insecurity and adult obesity, as well as the relationship between farmers markets, the percent of the population that is Asian, food insecurity and poverty rates.
By reviewing our visualizations both in Watson Studio and Watson, we learn that obesity and diabetes almost go hand in hand, along with food insecurity. We can also learn that this seems to be an inequality issue, both in income and race, with Black and Hispanic populations being more heavily impacted by food insecurity and diet-related diseases than those of the White and Asian populations. We can also see that school-aged children who qualify for reduced lunch are more likely obese than not whereas those that have a farm-to-school program are more unlikely to be obese.
Like many data science investigations, this analysis could have a big impact on policy and people's approach to food insecurity in the U.S. What's best is that we can create many projects much like this in a quick time period and share them with others by using Pandas, Pixie Dust as well as Watson's predictive and recommended visualizations.
