SoftGLRender

Tiny C++ Software Renderer/Rasterizer, it implements the main GPU rendering pipeline, 3D models (GLTF) are loaded by assimp, and using GLM as math library.

Code structure:

renderer: the main software renderer implementation, first preparing input data (Vertexes, Indices), then binding custom shaders, and setup rendering pipeline, after the pipeline finished, graphics will draw to the result framebuffer.
shader: the programmable render pipeline simulation, vertex shader and fragment shader are supported, and it is easy to port real GLSL code to this project, several basic shaders are embed such as blinn-phong lighting, skybox, PBR & IBL, etc.
app: code for Viewer, mainly include GLTF loading (based on Assimp), camera & controller, setting panel, and render pass management.

Renderer Pipeline Features

Wireframe
View Frustum culling
Back-Front culling
Orbit Camera Controller
Perspective Correct Interpolation
Tangent Space Normal Mapping
Basic Lighting
Blinn-Phong shading
PBR & IBL shading
Skybox CubeMap & Equirectangular
Texture mipmaps
Texture tiling and swizzling (linear, tiled, morton)
Texture filtering and wrapping
Shader varying partial derivative dFdx dFdy
Alpha mask & blend
Reversed Z, Early Z

Texture

Texture Filtering

NEAREST
LINEAR
NEAREST_MIPMAP_NEAREST
LINEAR_MIPMAP_NEAREST
NEAREST_MIPMAP_LINEAR
LINEAR_MIPMAP_LINEAR

Texture Wrapping

REPEAT
MIRRORED_REPEAT
CLAMP_TO_EDGE
CLAMP_TO_BORDER
CLAMP_TO_ZERO

Several commonly used texture fetch parameter are Supported, such as Lod, Bias, Offset, to support texture mipmaps, the renderer pipeline has implement shader varying partial derivative function dFdx dFdy, rasterization operates on 4 pixels as a Quad, dFdx dFdy is the difference between adjacent pixel shader variables:

/**
 *   p2--p3
 *   |   |
 *   p0--p1
 */
PixelContext pixels[4];

The storage of texture supports three modes:

Linear: pixel values are stored line by line, commonly used as image RGBA buffer
Tiled: block base storage, inside the block pixels are stored as Linear
Morton: block base storage, inside the block pixels are stored as morton pattern (similar to zigzag)

Anti Aliasing

SSAA
FXAA
MSAA
TAA

Shading

Blinn-Phong
PBR-BRDF

Optimization

Multi-Threading: rasterization is block based with multi-threading support, currently the triangle traversal algorithm needs to be optimized.
SIMD: SIMD acceleration is used to optimize performance bottlenecks, such as barycentric coordinate calculation, shader's varying interpolation, etc.

Showcase

Render Textured

BoomBox (PBR)
Robot
DamagedHelmet (PBR)
GlassTable
AfricanHead
Brickwall
Cube

Render Wireframe

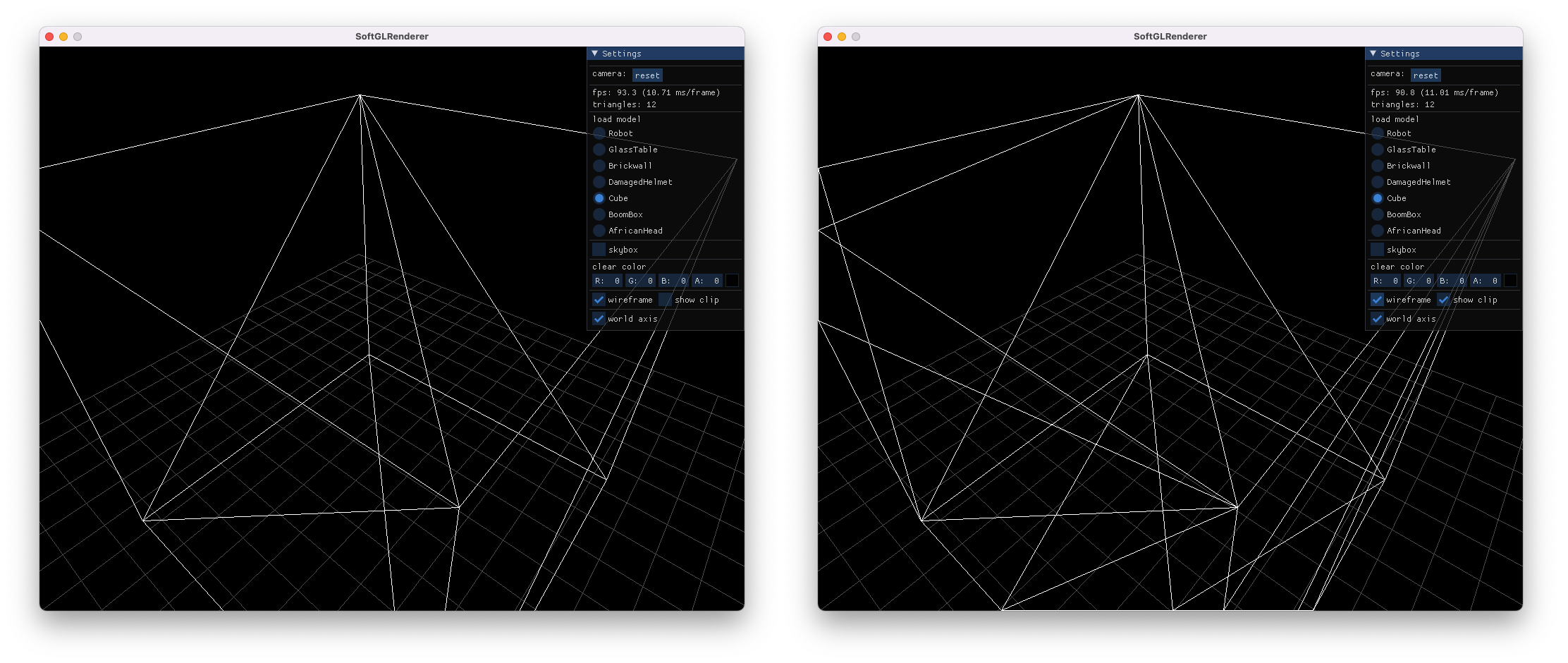

Check "show clip" to show the triangles created by frustum clip

Dependencies

Clone

git clone git@github.com:keith2018/SoftGLRender.git
cd SoftGLRender
git submodule update --init --recursive

Build

mkdir build
cmake -B ./build -DCMAKE_BUILD_TYPE=Release
cmake --build ./build --config Release

Run

cd bin/Release
./SoftGLRender

License

This code is licensed under the MIT License (see LICENSE).
