my blog about CTPN blog


nms and bbox utils are written in cython, you have to build the library first.

cd utils/bbox
sh make.sh

It will generate a nms.so and a bbox.so in current folder.

how to test

  • follow setup to build the library
  • download the test model
  • change you own model_path , dir_path and save_path in inference.py
python3 inference.py

test model

base_model Model_size(M) model_file
vgg16_bn 67.7 baiduyun(extract code: 5pgy)
resnet50 137 baiduyun(extract code: 5pgy)
shufflenet_v2_x1_0 25.4 baiduyun (extract code: 5pgy)
mobilenet_v3_large 16.9 baiduyun (extract code: 5pgy)
mobilenet_v3_small 13.5 baiduyun (extract code: 5pgy)

how to train

data format

follow icdar15 dataset format, x1,y1,x2,y2,x3,y3,x4,y4,label

│   1.jpg
│   2.jpg
│		...
│   1.txt
│   2.txt
|		...


Simplely run

python3 train.py --base_model vgg16_bn --batch_size 4 --size_list [1048]

Some explanations

  1. Support switching basemodel,(mobilenet_v3_large,mobilenet_v3_small, shufflenet_v2_x1_0, shufflenet_v2_x0_5, vgg11, vgg11_bn, vgg16, vgg16_bn, vgg19, vgg19_bn, resnet18, resnet34 ,resnet50, resnet101, resnet152)
  2. Ohem algorithm is added
  3. Support batch training
  4. When the size_list has multiple values, the maximum edge of the training picture will be randomly zoomed when training. It should be noted that you must ensure that your GPU memory supports maximum edge scaling.


only train on icdar2015
rescall prediction hmean
0.4058 0.6117 0.4879

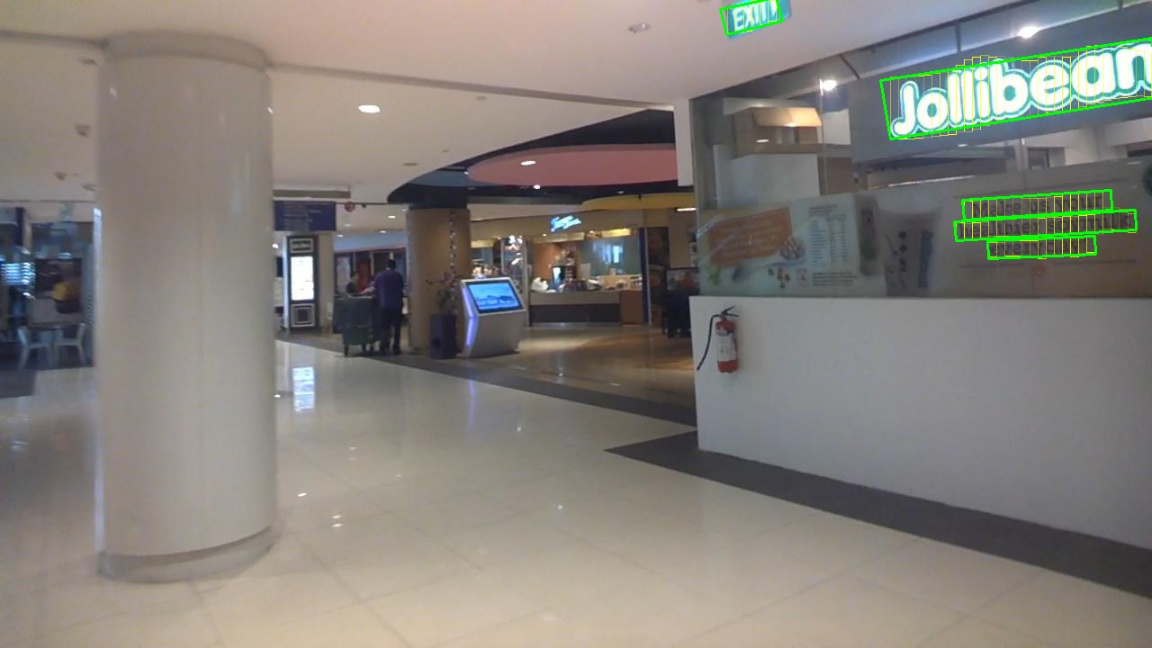

some results in icdar2015

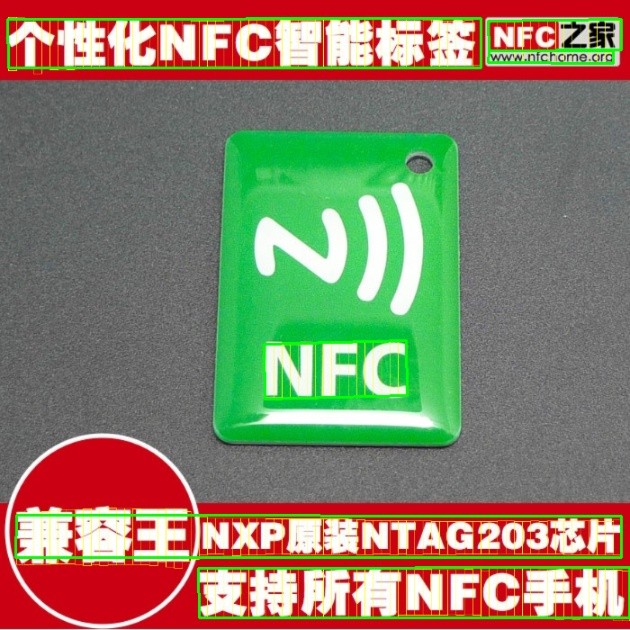

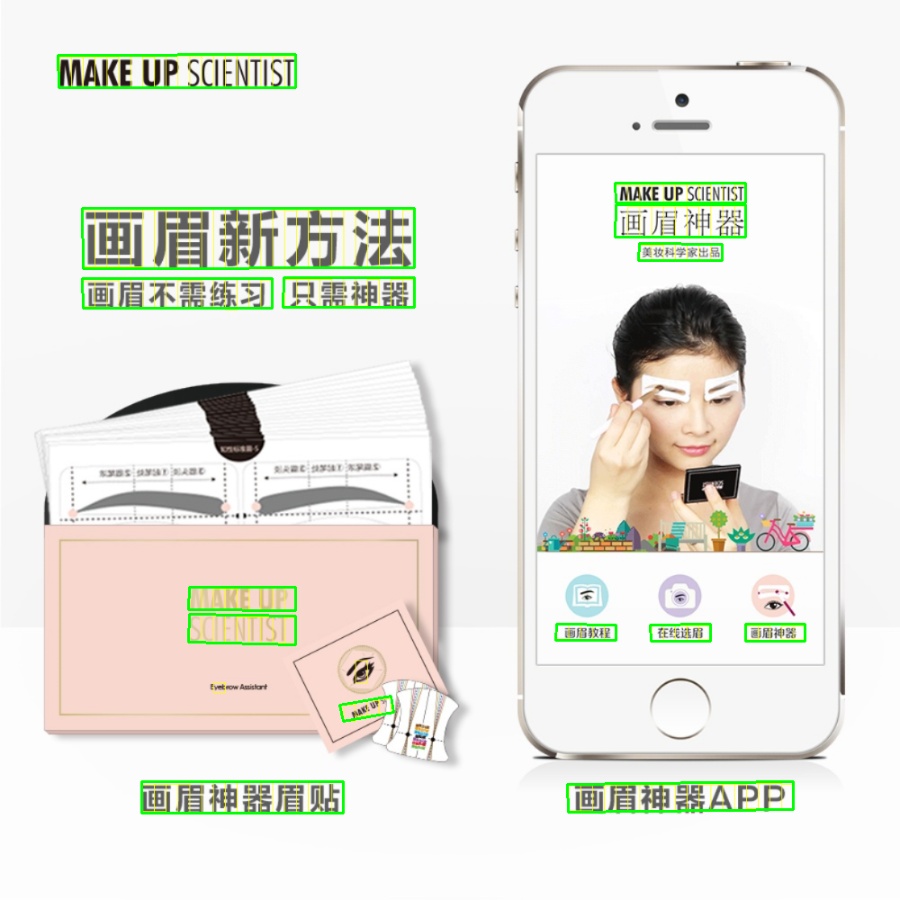

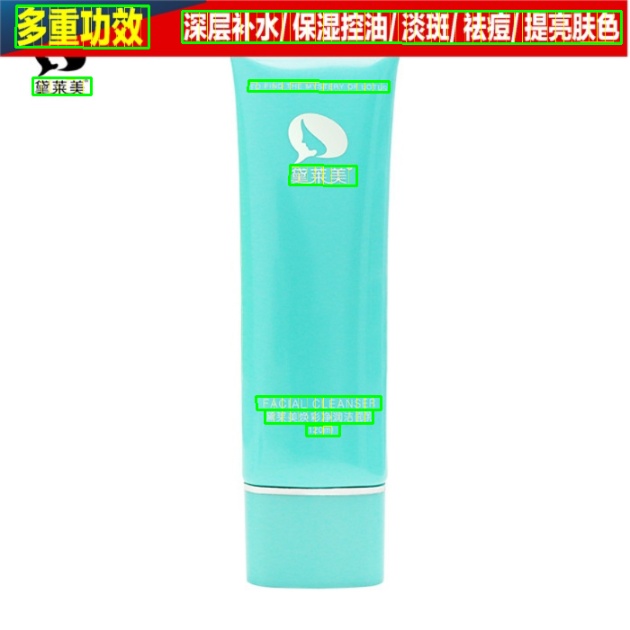

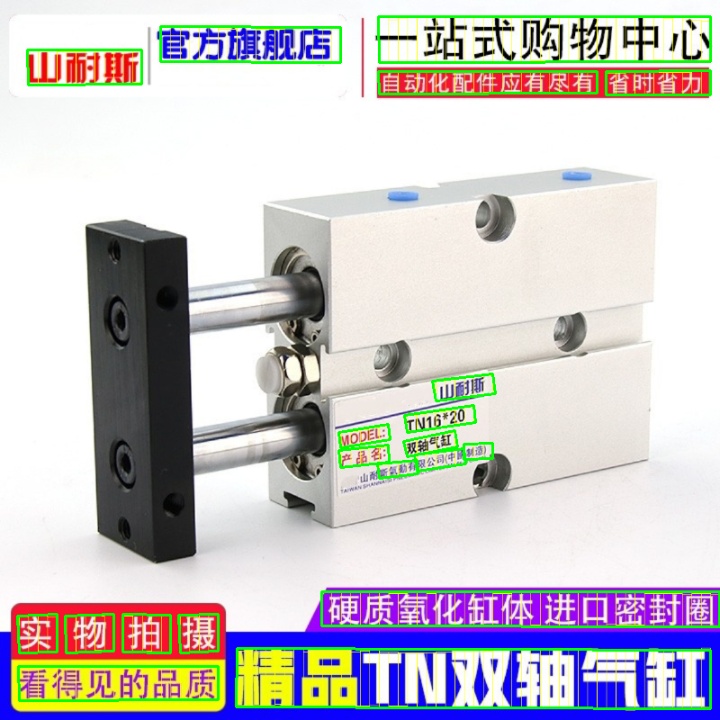

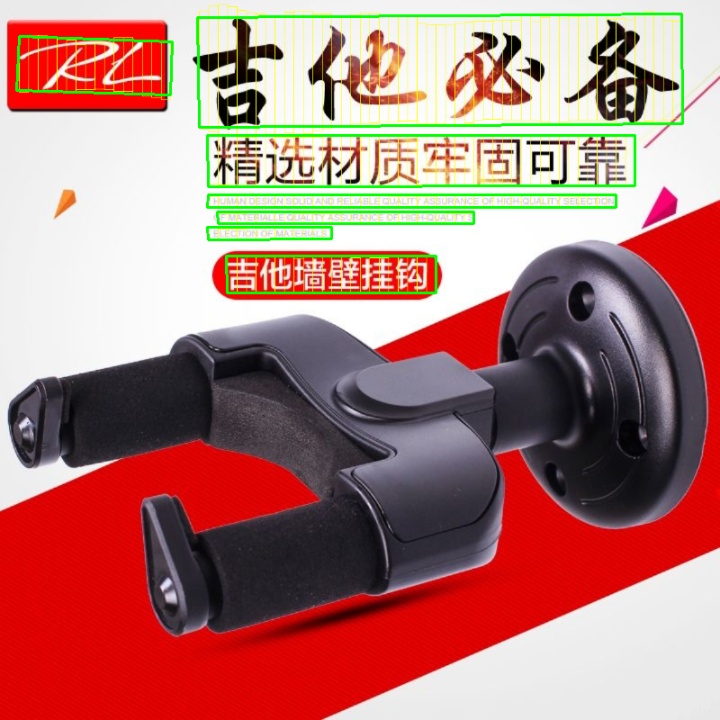

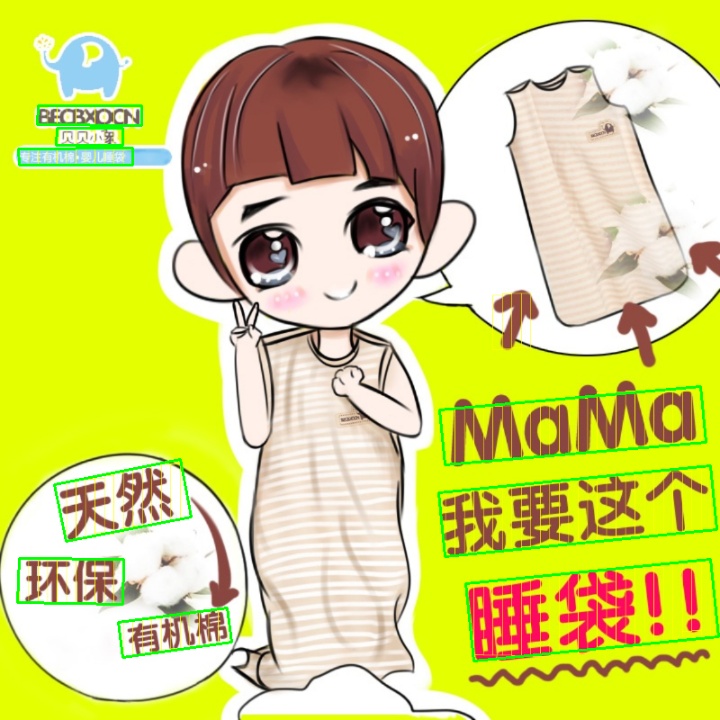

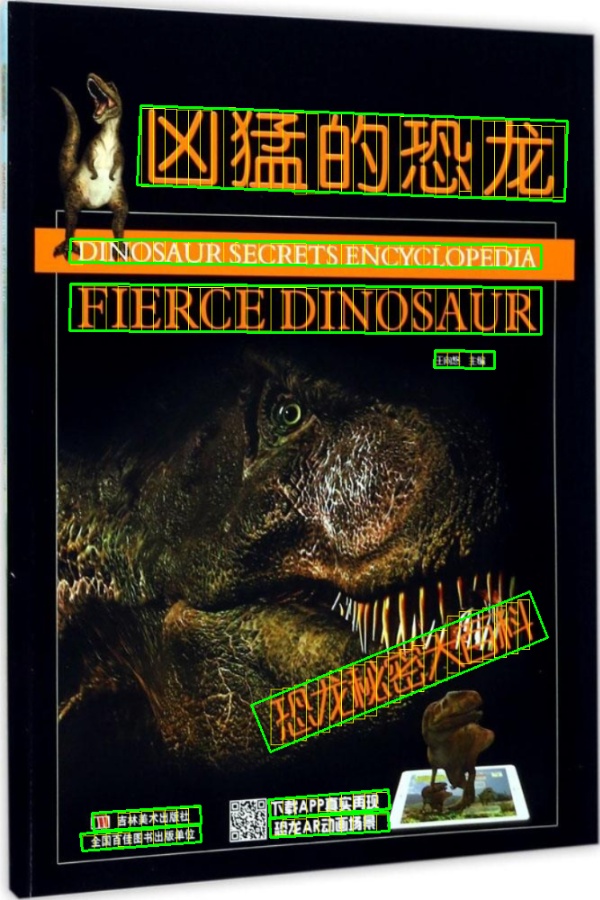

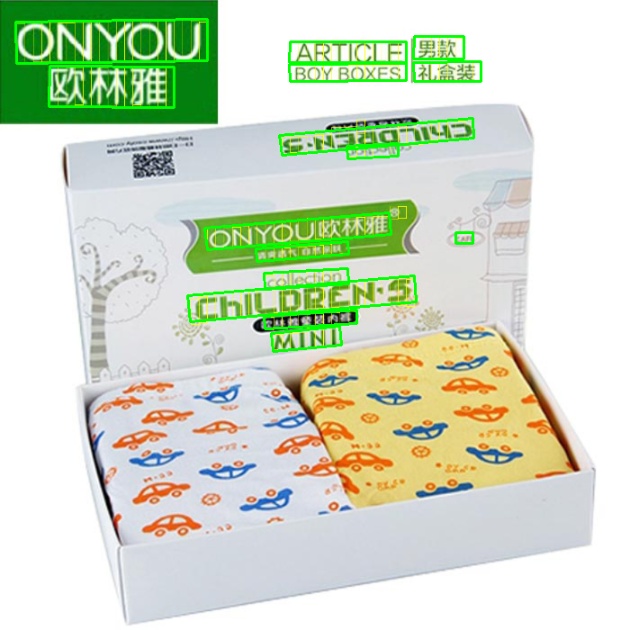

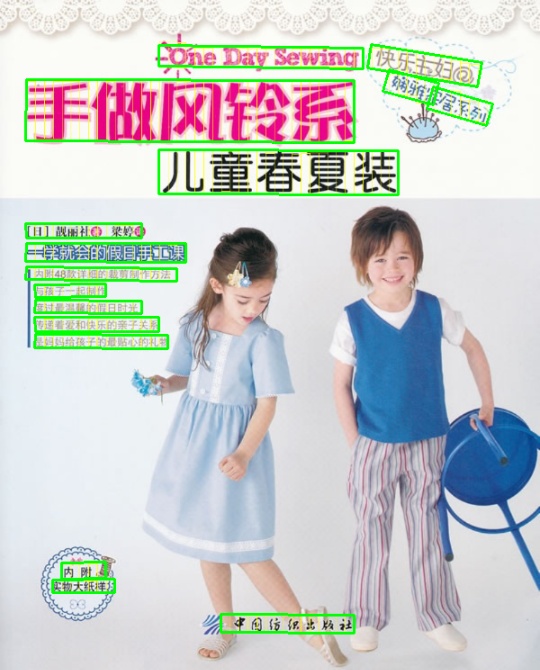

some results in MTWI2018


  1. https://github.com/eragonruan/text-detection-ctpn
  2. https://github.com/AstarLight/Lets_OCR/tree/master/detector/ctpn
  3. https://github.com/xhzdeng/stela
  4. https://github.com/xiaolai-sqlai/mobilenetv3
