beanz / typhon-scad

Rebuild of metric cerberus delta printer

Typhon-scad

Cerberus-revised for MGN rails

---

Table of Contents

1. Parts list
2. Bowden Clip Assembly
3. Spool Mount Assembly
4. Duet Assembly
5. Effector Hot End Mount Front Assembly
6. Effector Hot End Mount Back Assembly
7. Effector Hot End Mount Assembly
8. Extruder Mount Assembly
9. Effector Assembly
10. Idler Assembly
11. Top Corner Assembly
12. Bottom Motor Mount Assembly
13. Bed Mount Right Assembly
14. Bottom Extrusion Assembly
15. Bottom Corner Bottom Assembly
16. Two Part Bottom Corner Assembly
17. Bottom Corner Assembly
18. Arm Assembly
19. Carriage Assembly
20. Rail Guard Assembly
21. Upright C Assembly
22. Tower C Assembly
23. Upright B Assembly
24. Tower B Assembly
25. Upright A Assembly
26. Tower A Assembly
27. Main Assembly

Top

---

Parts list

Bowden Clip	Spool Mount	Duet	Effector Hot End Mount Front	Effector Hot End Mount Back	Effector Hot End Mount	Extruder Mount	Effector	3 x Idler	3 x Top Corner	3 x Bottom Motor Mount	3 x Bed Mount Right	3 x Bottom Extrusion	3 x Bottom Corner Bottom	3 x Two Part Bottom Corner	3 x Bottom Corner	3 x Arm	3 x Carriage	3 x Rail Guard	Upright C	Tower C	Upright B	Tower B	Upright A	Tower A	Main	TOTALS
																											Vitamins
.	2	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	2	Ball bearing 608-2RS 8mm x 22mm x 7mm
.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	1	.	.	.	.	.	1	Belt GT2 x 6mm x 2072mm
.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	1	.	.	.	1	Belt GT2 x 6mm x 2072mm
.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	1	.	1	Belt GT2 x 6mm x 2072mm
.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	6	.	.	.	.	.	.	.	.	.	6	CF rod 3mm x 231mm
.	.	.	.	.	.	.	.	.	3	.	.	3	.	.	3	.	.	.	.	.	.	.	.	.	.	9	Extrusion E2020 x 300mm
.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	1	.	1	.	1	.	.	3	Extrusion E4040 x 1000mm
.	.	.	.	.	1	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	1	Fan 40mm x 11mm
.	.	.	4	6	.	2	.	.	.	.	.	.	24	.	.	.	.	.	.	.	.	.	.	.	.	36	Heatfit insert M3 x 4mm
.	.	.	.	.	1	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	1	Hot end E3D V6 direct 1.75mm
.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	1	.	1	.	1	.	.	3	Linear rail MGN12 x 800mm
.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	3	.	.	.	.	.	.	.	.	3	Linear rail carriage MGN12H
.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	3	.	.	.	.	.	.	.	.	3	Nut M3 x 2.4mm
.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	6	.	.	.	.	.	.	.	.	6	Nut M3 x 2.4mm nyloc
.	.	.	.	.	.	.	.	12	24	24	6	.	.	.	48	.	.	.	.	.	.	.	.	.	.	114	Nut M4 sliding T
2	2	4	.	.	.	.	.	3	9	.	.	.	.	.	18	.	.	3	.	.	.	.	.	.	.	41	Nut M5 sliding T
.	4	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	4	Nut M8 x 6.5mm
.	.	.	.	.	.	.	.	3	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	3	Pulley GT2 idler 16 teeth
.	.	.	.	.	.	.	.	.	.	3	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	3	Pulley GT2OB 20 teeth
.	.	.	4	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	4	Screw M2 cap x 6mm
.	.	4	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	4	Screw M3 cap x 6mm
.	.	.	.	.	.	.	.	.	.	12	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	12	Screw M3 cap x 8mm
.	.	.	.	.	.	.	.	.	.	.	.	.	.	24	.	.	12	.	.	.	.	.	.	.	.	36	Screw M3 cap x 10mm
.	.	.	.	.	2	.	.	.	.	.	.	.	.	.	.	.	.	.	18	.	18	.	18	.	.	56	Screw M3 cap x 16mm
.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	9	.	.	.	.	.	.	.	.	9	Screw M3 cap x 20mm
.	.	.	.	.	2	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	2	Screw M3 cap x 30mm
.	.	.	.	.	.	4	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	4	Screw M3 dome x 10mm
.	.	.	.	.	.	.	4	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	4	Screw M3 dome x 16mm
.	.	.	.	.	.	.	.	.	.	6	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	6	Screw M3 grub x 6mm
.	.	.	.	.	.	.	.	12	24	24	6	.	.	.	48	.	.	.	.	.	.	.	.	.	.	114	Screw M4 flanged x 10mm
2	2	4	.	.	.	.	.	.	9	.	.	.	.	.	18	.	.	3	.	.	.	.	.	.	.	38	Screw M5 flanged x 16mm
.	.	.	.	.	.	.	.	3	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	3	Screw M5 flanged x 49mm
.	.	.	.	.	.	.	.	.	.	.	3	.	.	.	.	.	.	.	.	.	.	.	.	.	.	3	Screw M6 cap x 10mm
.	.	.	1	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	1	Square radial fan 4010
.	.	.	.	.	.	.	.	.	.	3	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	3	Stepper motor NEMA17 x 47mm (5x24 shaft)
.	1	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	1	Threaded rod M8 x 120mm
.	.	.	.	.	.	.	.	.	.	12	.	.	.	.	.	.	24	.	.	.	.	.	.	.	.	36	Washer M3 x 7mm x 0.5mm
.	4	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	4	Washer M8 x 17mm x 1.6mm
.	2	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	2	Washer penny M8 x 30mm x 1.5mm
.	.	.	.	.	.	.	.	.	.	.	3	.	.	.	.	.	.	.	.	.	.	.	.	.	.	3	Washer rubber M6 x 12.5mm x 1.5mm
.	.	.	.	.	.	.	1	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	1	orbiter v2.0
4	17	12	9	6	6	6	5	33	69	84	18	3	24	24	135	6	57	6	20	1	20	1	20	1	.	587	Total vitamins count
																											3D printed parts
.	.	.	.	.	.	.	.	.	.	.	3	.	.	.	.	.	.	.	.	.	.	.	.	.	.	3	bed_mount_right.stl
.	.	.	.	.	.	.	.	.	.	.	.	.	3	.	.	.	.	.	.	.	.	.	.	.	.	3	bottom_corner_bottom.stl
.	.	.	.	.	.	.	.	.	.	.	.	.	.	3	.	.	.	.	.	.	.	.	.	.	.	3	bottom_corner_top.stl
.	.	.	.	.	.	.	.	.	.	3	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	3	bottom_motor_mount.stl
1	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	1	bowden_clip.stl
.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	3	.	.	.	.	.	.	.	.	3	carriage.stl
.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	3	.	.	.	.	.	.	.	.	3	carriage_belt_tensioner.stl
.	.	.	.	.	.	.	1	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	1	effector.stl
.	.	.	.	.	.	1	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	1	effector_extruder_mount.stl
.	.	.	.	1	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	1	effector_hot_end_mount_back.stl
.	.	.	1	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	1	effector_hot_end_mount_front.stl
.	.	.	.	.	.	.	.	3	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	3	idler.stl
.	.	.	.	.	.	.	.	3	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	3	idler_spacers.stl
.	.	1	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	1	left_pcb_mount.stl
.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	3	.	.	.	.	.	.	.	3	rail_guard.stl
.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	4	4	rail_helper.stl
.	.	1	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	1	right_pcb_mount.stl
.	1	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	1	spool_mount.stl
.	.	.	.	.	.	.	.	.	3	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	.	3	top_corner.stl
1	1	2	1	1	.	1	1	6	3	3	3	.	3	3	.	.	6	3	.	.	.	.	.	.	4	42	Total 3D printed parts count

Top

---

Bowden Clip Assembly

Vitamins

Qty	Description
2	Nut M5 sliding T
2	Screw M5 flanged x 16mm

3D Printed parts

1 x bowden_clip.stl

Assembly instructions

Top

---

Spool Mount Assembly

Vitamins

Qty	Description
2	Ball bearing 608-2RS 8mm x 22mm x 7mm
2	Nut M5 sliding T
4	Nut M8 x 6.5mm
2	Screw M5 flanged x 16mm
1	Threaded rod M8 x 120mm
4	Washer M8 x 17mm x 1.6mm
2	Washer penny M8 x 30mm x 1.5mm

3D Printed parts

1 x spool_mount.stl

Assembly instructions

Top

---

Duet Assembly

Vitamins

Qty	Description
4	Nut M5 sliding T
4	Screw M3 cap x 6mm
4	Screw M5 flanged x 16mm

3D Printed parts

1 x left_pcb_mount.stl	1 x right_pcb_mount.stl

Assembly instructions

Top

---

Effector Hot End Mount Front Assembly

Vitamins

Qty	Description
4	Heatfit insert M3 x 4mm
4	Screw M2 cap x 6mm
1	Square radial fan 4010

3D Printed parts

1 x effector_hot_end_mount_front.stl

Assembly instructions

Top

---

Effector Hot End Mount Back Assembly

Vitamins

Qty	Description
6	Heatfit insert M3 x 4mm

3D Printed parts

1 x effector_hot_end_mount_back.stl

Assembly instructions

Top

---

Effector Hot End Mount Assembly

Vitamins

Qty	Description
1	Fan 40mm x 11mm
1	Hot end E3D V6 direct 1.75mm
2	Screw M3 cap x 16mm
2	Screw M3 cap x 30mm

Sub-assemblies

1 x effector_hot_end_mount_back_assembly	1 x effector_hot_end_mount_front_assembly

Assembly instructions

Top

---

Extruder Mount Assembly

Vitamins

Qty	Description
2	Heatfit insert M3 x 4mm
4	Screw M3 dome x 10mm

3D Printed parts

1 x effector_extruder_mount.stl

Assembly instructions

Top

---

Effector Assembly

Vitamins

Qty	Description
4	Screw M3 dome x 16mm
1	orbiter v2.0

3D Printed parts

1 x effector.stl

Sub-assemblies

1 x effector_hot_end_mount_assembly	1 x extruder_mount_assembly

Assembly instructions

Top

---

3 x Idler Assembly

Vitamins

Qty	Description
12	Nut M4 sliding T
3	Nut M5 sliding T
3	Pulley GT2 idler 16 teeth
12	Screw M4 flanged x 10mm
3	Screw M5 flanged x 49mm

3D Printed parts

3 x idler.stl	3 x idler_spacers.stl

Assembly instructions

Top

---

3 x Top Corner Assembly

Vitamins

Qty	Description
3	Extrusion E2020 x 300mm
24	Nut M4 sliding T
9	Nut M5 sliding T
24	Screw M4 flanged x 10mm
9	Screw M5 flanged x 16mm

3D Printed parts

3 x top_corner.stl

Sub-assemblies

3 x idler_assembly

Assembly instructions

Top

---

3 x Bottom Motor Mount Assembly

Vitamins

Qty	Description
24	Nut M4 sliding T
3	Pulley GT2OB 20 teeth
12	Screw M3 cap x 8mm
6	Screw M3 grub x 6mm
24	Screw M4 flanged x 10mm
3	Stepper motor NEMA17 x 47mm (5x24 shaft)
12	Washer M3 x 7mm x 0.5mm

3D Printed parts

3 x bottom_motor_mount.stl

Assembly instructions

Top

---

3 x Bed Mount Right Assembly

Vitamins

Qty	Description
6	Nut M4 sliding T
6	Screw M4 flanged x 10mm
3	Screw M6 cap x 10mm
3	Washer rubber M6 x 12.5mm x 1.5mm

3D Printed parts

3 x bed_mount_right.stl

Assembly instructions

Top

---

3 x Bottom Extrusion Assembly

Vitamins

Qty	Description
3	Extrusion E2020 x 300mm

Sub-assemblies

3 x bed_mount_right_assembly

Assembly instructions

Top

---

3 x Bottom Corner Bottom Assembly

Vitamins

Qty	Description
24	Heatfit insert M3 x 4mm

3D Printed parts

3 x bottom_corner_bottom.stl

Assembly instructions

Top

---

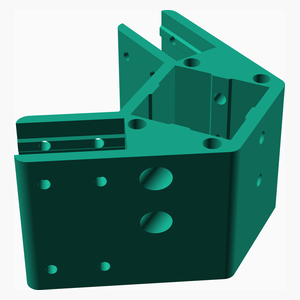

3 x Two Part Bottom Corner Assembly

Vitamins

Qty	Description
24	Screw M3 cap x 10mm

3D Printed parts

3 x bottom_corner_top.stl

Sub-assemblies

3 x bottom_corner_bottom_assembly

Assembly instructions

Top

---

3 x Bottom Corner Assembly

Vitamins

Qty	Description
3	Extrusion E2020 x 300mm
48	Nut M4 sliding T
18	Nut M5 sliding T
48	Screw M4 flanged x 10mm
18	Screw M5 flanged x 16mm

Sub-assemblies

3 x bottom_extrusion_assembly	3 x bottom_motor_mount_assembly	3 x two_part_bottom_corner_assembly

Assembly instructions

Top

---

3 x Arm Assembly

Vitamins

Qty	Description
6	CF rod 3mm x 231mm

Assembly instructions

Top

---

3 x Carriage Assembly

Vitamins

Qty	Description
3	Linear rail carriage MGN12H
3	Nut M3 x 2.4mm
6	Nut M3 x 2.4mm nyloc
12	Screw M3 cap x 10mm
9	Screw M3 cap x 20mm
24	Washer M3 x 7mm x 0.5mm

3D Printed parts

3 x carriage.stl	3 x carriage_belt_tensioner.stl

Sub-assemblies

3 x arm_assembly

Assembly instructions

Top

---

3 x Rail Guard Assembly

Vitamins

Qty	Description
3	Nut M5 sliding T
3	Screw M5 flanged x 16mm

3D Printed parts

3 x rail_guard.stl

Assembly instructions

Top

---

Upright C Assembly

Vitamins

Qty	Description
1	Extrusion E4040 x 1000mm
1	Linear rail MGN12 x 800mm
18	Screw M3 cap x 16mm

Sub-assemblies

1 x carriage_assembly	1 x rail_guard_assembly

Assembly instructions

Top

---

Tower C Assembly

Vitamins

Qty	Description
1	Belt GT2 x 6mm x 2072mm

Sub-assemblies

1 x bottom_corner_assembly	1 x top_corner_assembly	1 x upright_c_assembly

Assembly instructions

Top

---

Upright B Assembly

Vitamins

Qty	Description
1	Extrusion E4040 x 1000mm
1	Linear rail MGN12 x 800mm
18	Screw M3 cap x 16mm

Sub-assemblies

1 x carriage_assembly	1 x rail_guard_assembly

Assembly instructions

Top

---

Tower B Assembly

Vitamins

Qty	Description
1	Belt GT2 x 6mm x 2072mm

Sub-assemblies

1 x bottom_corner_assembly	1 x top_corner_assembly	1 x upright_b_assembly

Assembly instructions

Top

---

Upright A Assembly

Vitamins

Qty	Description
1	Extrusion E4040 x 1000mm
1	Linear rail MGN12 x 800mm
18	Screw M3 cap x 16mm

Sub-assemblies

1 x carriage_assembly	1 x rail_guard_assembly

Assembly instructions

Top

---

Tower A Assembly

Vitamins

Qty	Description
1	Belt GT2 x 6mm x 2072mm

Sub-assemblies

1 x bottom_corner_assembly	1 x top_corner_assembly	1 x upright_a_assembly

Assembly instructions

Top

---

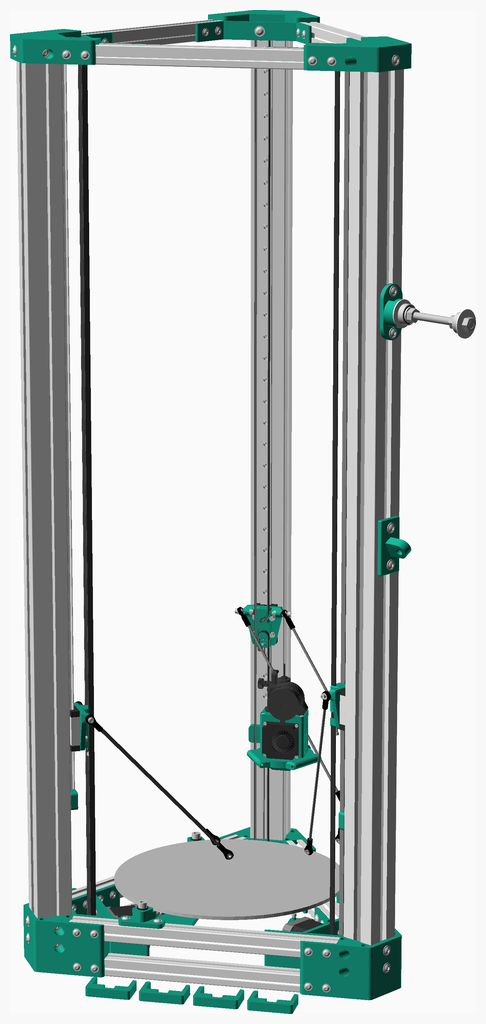

Main Assembly

3D Printed parts

4 x rail_helper.stl

Sub-assemblies

1 x bowden_clip_assembly	1 x duet_assembly	1 x effector_assembly

1 x spool_mount_assembly	1 x tower_a_assembly	1 x tower_b_assembly

1 x tower_c_assembly

Assembly instructions

Insert PSU

Top
