Weak references

jogold opened this issue · comments

commented

Description

For some CloudFormation resources an update sometimes requires a replacement.

Examples of such resources are AWS::RDS::DBInstance, AWS::DynamoDB::Table or AWS::Lambda::LayerVersion.

Using those resources in a cross-stack fashion results in Fn::ImportValues that will prevent those updates (lock situation).

The CDK could offer a way to loosely couple stacks by wrapping values in a SSM parameter in the producing stack and unwrapping it in the consuming stack.

Proposed Solution

Add support for "weak references" which materialize through SSM parameters instead of CloudFormation exports/imports.

Things to consider:

  • If an SSM parameter changes, all referencing stacks will need to be manually updated in order to consume the new value. The desired behavior in the CDK is that this will automatically happen in cdk deploy and through CI/CD. One way to achieve this is to somehow "salt" the reference name so that the SSM parameter will be immutable and a new parameter will be created every time the value changes. This will invalidate the consuming stack since the SSM parameter name will be different.

Prototype

Create a Wrapper class:

export class Wrapper extends cdk.Construct {
  private readonly parameterName: string;

  constructor(scope: cdk.Construct, id: string, value: string) {
    super(scope, id);

    this.parameterName = `/cdk/${this.node.uniqueId}`;

    new ssm.StringParameter(this, 'Parameter', {
      parameterName: this.parameterName,
      stringValue: value
    });
  }

  // To be used in the consuming stack
  // (will create a `Parameter` of type `AWS::SSM::Parameter::Value<String>`)
  public getValue(scope: cdk.Construct): string {
    scope.node.addDependency(this); // Force stacks dependency as no `Fn::ImportValue` will be generated
    return ssm.StringParameter.valueForStringParameter(scope, this.parameterName);
  }
}

Usage:

class StackA extends cdk.Stack {
  public readonly wrappedEndpoint: Wrapper;

  constructor(scope: cdk.Construct, id: string, props?: cdk.StackProps) {
    super(scope, id, props);

    const database = new rds.DatabaseInstanceFromSnapshot(this, 'Database', {
      snapshotIdentifier: 'snapshot-id'
      // ...more props here...
    });
    this.wrappedEndpoint = new Wrapper(this, 'Endpoint', database.dbInstanceEndpointAddress);
  }
}

interface StackBProps extends cdk.StackProps {
  wrappedEndpoint: Wrapper;
}
class StackB extends cdk.Stack {
  constructor(scope: cdk.Construct, id: string, props: StackBProps) {
    super(scope, id, props);

    const fn = new lambda.Function(this, 'Fn', {
      // ...other props here...
      environment: {
        DATABASE_ENDPOINT: props.wrappedEndpoint.getValue(this),
      },
    });
  }
}

Now we are able to update the snapshotIdentifier prop in StackA (e.g. recover from snapshot after incident). There will be no downtime because DatabaseInstanceFromSnapshot are retained (orphaned).

Another solution here, since we are "transporting" an address, would have been to wrap it in a CNAME DNS record in a private hosted zone using Service Discovery...

commented

@eladb any feedback on this? do you think this is of interest for the CDK?

Example of a DnsWrapper could be:

class DnsWrapper extends cdk.Construct {
  public readonly domainName: string;

  constructor(scope: cdk.Construct, id: string, props: DnsWrapperProps) {
    super(scope, id);

    const existingNamespace = props.namespace || this.node.tryFindChild('Namespace') as servicediscovery.PrivateDnsNamespace;
    const namespace = existingNamespace || new servicediscovery.PrivateDnsNamespace(this, 'Namespace', {
      name: 'cdk.app',
      vpc: props.vpc,
    });

    const service = new servicediscovery.Service(this, 'Service', {
      dnsRecordType: servicediscovery.DnsRecordType.CNAME,
      namespace,
    });

    service.registerCnameInstance('Resource', {
      instanceCname: props.domainName,
    });

    this.domainName = `${service.serviceName}.${namespace.namespaceName}`;
  }
}

which allows to export a domain name without coupling the stacks on the resource that creates this domain name (database, cluster, load balancer).

commented

I've implemented something similar for some use cases I have which involve passing lambda version arns between stacks, which obviously will change frequently and therefore not work with the current export/import method used for cross stack references. This may just be biased because for my use cases, almost all of my cross stack references are things that may change, but I'd almost prefer if the default mechanism for cross stack references was via SSM parameters and not via export/import.

commented

any news on this? I am running into issues with this regarding sharing load balancer attributes across stacks

commented

This only makes sense if the loosely coupled resource has DeletionPolicy: Retain, otherwise this will create downtime or even prevent the origin stack from being updated - for example, you cannot delete a VPC without deleting all subnets, so even if the coupling for the VPC id was loose, the VPC cannot be replaced.

The solution is to use nested stacks, which are supported in CDK since 1.12.0. In the VPC example, with StackA having VPC and StackB having a Subnet for that VPC, CloudFormation will happily create a new VPC in StackA, create a new Subnet in StackB, then delete old subnet in StackB, and then delete old VPC in StackA, making the resource replacement work as intended and without downtime.

commented

This is a very interesting idea. I am transferring this to the RFC repo. Please follow the RFC Repo README in order to submit this as an RFC.

commented

@nakedible Are you talking about a hypothetical feature or the current behavior? Doesn't the VPC ID output from VpcStack (required by SubnetStack) prevent VpcStack from updating?

commented

This can be implemented directly into the CDK's core module.

I've opened a PR implementing this here - aws/aws-cdk#8891

commented

@nija-at following up on your PR and my comment that adding this to construct-compat won’t work.

Can we add this as a feature of Stack (i.e in StackProps) ? Feels like the right place...

I am not sure it makes sense that any scope will have that setting because it’s very specific to the relationship between stacks.

commented

@eladb - I suppose this implies that the user will configure this value?

While this does control relationship between stacks, this is dependent on the resource being referenced.
It seems appropriate for the resource to mark itself as strong/weak. This also implies that not all resources exported from the same stack (and later imported) should be treated the same.

It might also be too late (hence, too painful) when the end user realizes that this property should be set.
The realization will likely happen when the stack update for this resource fails. At this point, the user will have to move through a set of transitions to migrate their stacks from using Fn::ImportValue to SSM, because of the update/delete limitations that CloudFormation applies.

How about moving to a model where Construct in constructs contains an opaque key-value pair while Construct in the CDK is a stateless proxy/facade to it (not a subclass), and give it stronger typing?

commented

@nija-at before we dive into the implementation, can we start by enumerating a few use cases and thinking what is the mental model of the user of this feature. Who should be able to make a decision about whether a reference is strong or weak?

It seems to me like this is something that users should be able to configure when they decide how to lay out their stacks (as oppose to being specified at the construct level and vended through a library).

I can see how it makes sense for some references to be defined as weak and some as strong, but I am wondering what would be reasonable ergonomics to be able to indicate at the stack level which references should be what.

commented

As with aws/aws-cdk#1972 we have created a LambdaLayer in LambdaLayerStack which is then passed as a reference (we use TypeScript) to LambdaStack where it's added as the layers prop in NodejsFunction for the functions.
The functions are then exported and in the APIGatewayStack for the HttpLambdaIntegration.

The other use case is Lambda@Edge where we export the experimental.EdgeFunction from the EdgeStack and then import in the CloudFrontStack to be added as the edgeLambdas in defaultBehavior.

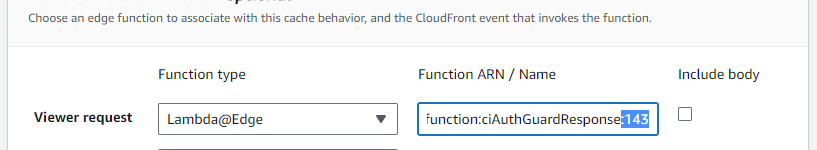

My simple understanding was that when you change and build a new EdgeFunction, the reference in the Behavior would just get the updated version and everything would be fine. The function should be deployed as a new version and the that version should be references here:

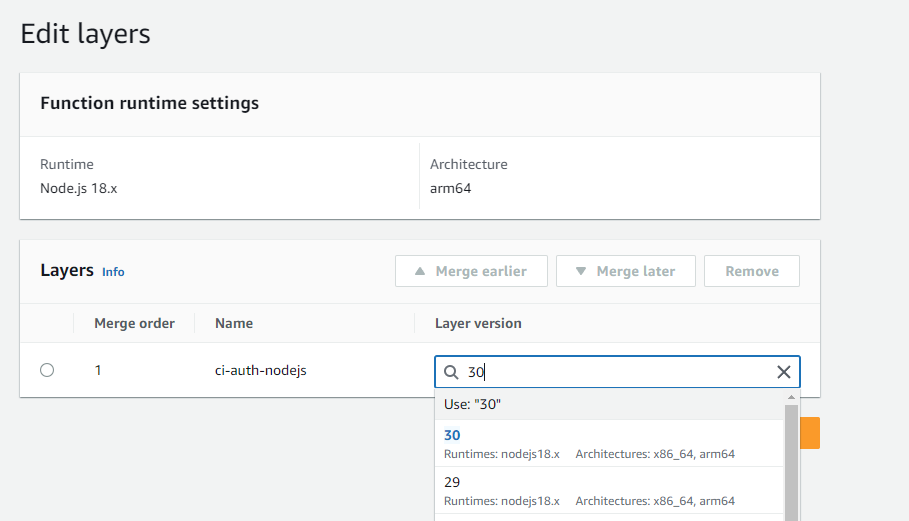

The same goes for layers. All the lambdas using the layer would just get the new version updated under Layers.


We are also using crossRegionalReference since Edge functions has to be located in us-east-1 and we're located in eu-west-1.
